Shure | SKU: UA874US

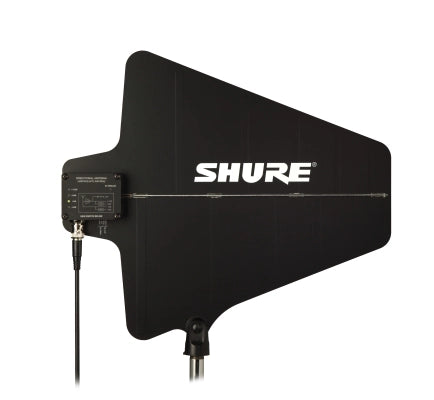

Shure - UA874US UHF Active Directional Antenna - 470-698 MHz

Name: Shure - UA874US UHF Active Directional Antenna - 470-698 MHz
Brand: Shure
SKU: UA874US
Price: 579.00 CAD
Availability: OutOfStock

$579.00

This product is not currently available online. Contact us to order this product or for more information.

50 years of expertise

Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.

Shipping

Shipping is free for all purchases of $249 or more.

Delivery policy

We offer free shipping on most products of $ 249.00 and over.

Free shipping is not valid for remote regions such as Nunavut, Yukon, Northwest Territories.

Due to size, weight or destination, some items will not qualify for free shipping.Métronomie ships all items uninsured. The risk of shipping loss or damage is the sole responsibility of the customer. The products are available within the limits of available stocks.

Métronomie provides dispatch or delivery, it will endeavor to ship or deliver any ordered product as soon as possible and within the time specified, if any. However, you understand that Métronomie will not be held responsible for delays in shipment or delivery.

Questions/Contact

Please call our toll-free web store customer support line at 1-418-724-8088, or email metronomie@gmail.com with any questions, suggestions or concerns.

BEST PRICE GUARANTEE!

If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.

Payment and security

Payment methods

Your payment information is handled securely. We do not store or have access to your credit card details.

Description

The UA874US antenna delivers improved wireless signal reception for UHF wireless systems. Features include rejection of RF signals outside the coverage area and an integrated amplifier with four gain settings.

The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.

Features
• Low-noise signal amplifier compensates for insertion loss in coaxial cable
• Compatible with Shure wireless receivers and antenna distribution systems that provide 1015 V DC bias
• Integrated threaded adapter mounts easily to microphone stands
• Four-position gain selector switch
• Shure quality, ruggedness, and reliability

Specifications
Connector Type: BNC, Female
Impedance: 50 ohms
Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mA
Reception Pattern: 70 degrees
Third-order Intercept Point: 30 dBm
Antenna Gain (On Axis): 7.5 dBi
Signal Gain +/- 1dB: Switchable
Active: +12 dB, +6 dB
Passive: 0 dB, -6 dB
RF Overload LED Threshold: -5 dBm

With a coverage area of 470-698MHz, it works with the following Shure UHF wireless lines:
- SLX-D
- QLX-D
- ULX-D
- Axient Digital
- UA844/SWB Antenna Distribution Units

*Note: The antenna will not operate without 10-15 V DC bias. This is required even at -6 dB and 0 dB ("passive") gain settings. Not for use with In-Ear Monitor Systems and their associated antenna combiners.
