Description

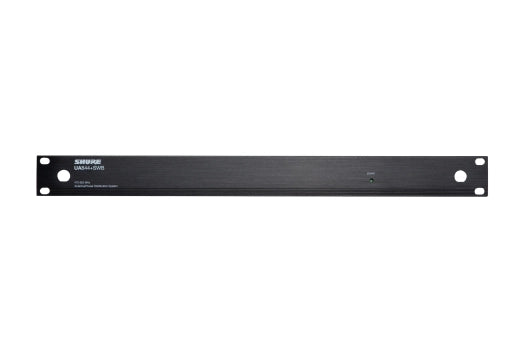

The Shure Model UA844+ is an antenna distribution system that allows for the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. It also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs. A single UA844+ system can support up to five wireless receivers. A maximum of five UA844+ systems may be used in a two-tiered configuration.

The UA844+SWB/LC option comes with the four push on DC cables and no antenna cables to connect receivers. See below for all box contents.

It is recommended for use with the BLXR and QLX-D wireless systems. To connect the receiver antenna ports to the UA844+SWB/LC, use the BNC-BNC antenna cables supplied with each wireless system.

Note: This unit is the same as the UA844+SWB except it does not include the 8x 22in BNC Cables that would be included with some wireless units or the locking power cables for SLX-D and ULX-D systems. Order the UA844+SWB if you require these cables.

Features
• Five-way RF signal output
• Support QLX-D, ULX, ULX-D, SLX-D, and BLX (BLX4R only) receivers
• Front-mounting antenna hardware
• Rack-mounting hardware
• 4 DC power feeds and for receivers (15V, 2.5A max)
• DC outputs for antenna bias (12V, 300mA max)

UA844+/LC Models Includes
- 1x UA844+ Antenna/Power Distribution System
- 1x PS45 power supply
- 4x Non-locking DC power cables (for QLXD4, BLX4R)
- 2x 22 in. BNC cables
- 2x 6 ft. BNC cables
- 2x Bulkhead adaptors
- 1x Rack mount Hardware kit
