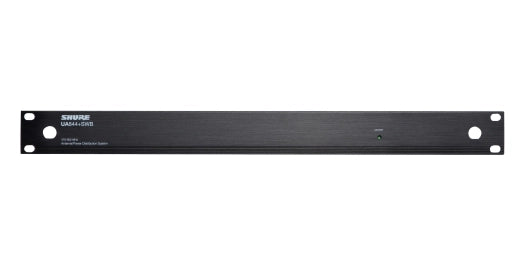

Shure - UA844+SWB 5-Way Active Antenna System with Antenna/Locking Power Cables
Shure - UA844+SWB 5-Way Active Antenna System with Antenna/Locking Power Cables is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at Rimouski
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more*
-
Processing: All orders are prepared and shipped within 24 hours (Monday to Friday).
-
Shipping Time: Delivery typically takes 3 to 7 business days. For faster delivery, please select Express Shipping at checkout.
- *Certain regions and products are excluded from free shipping due to size, weight, or destination.
Shure - UA844+SWB 5-Way Active Antenna System with Antenna/Locking Power Cables is backordered and will ship as soon as it is back in stock.
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The Shure Model UA844+ is an antenna distribution system that allows for the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. It also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs. A single UA844+ system can support up to five wireless receivers. A maximum of five UA844+ systems may be used in a two-tiered configuration.
The UA844+SWB option comes with the four push on DC cables, four locking DC cables and 8x BNC antenna cables to connect the receivers. See below for all box contents.
It is recommended for use with the SLX-D and ULX-D wireless systems or anytime you need the additional cabling. To connect the receiver antenna ports to the UA844+SWB/LC, use the BNC-BNC antenna cables supplied with each wireless system or the included 8x BNC cables.
Note: This unit is the same as the UA844+SWB/LC except it includes an additional 8x 22in BNC Cables and 4x locking DC power cables. Order the UA844+SWB/LC if you do not require these cables.
Features
• Five-way RF signal output
• Support QLX-D, ULX, ULX-D, SLX-D, and BLX (BLX4R only) receivers
• Front-mounting antenna hardware
• Rack-mounting hardware
• 4 DC power feeds and for receivers (15V, 2.5A max)
• DC outputs for antenna bias (12V, 300mA max)
UA844+SWB Model Includes
- 1x UA844+ Antenna/Power Distribution System
- 1x PS45 power supply
- 4x Non-locking DC power cables (for QLXD4, BLX4R)
- 4x Locking DC power cables (for SLX-D, ULX4D, ULXP4)
- 10x 22 inch BNC cables
- 2x 6 ft BNC cables
- 2x Bulkhead adaptors
- 1 Rack mount Hardware kit
