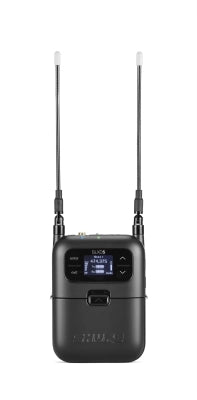

Shure - SLXD5 Single-Channel Portable Digital Wireless Receiver - J52
Shure - SLXD5 Single-Channel Portable Digital Wireless Receiver - J52 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The SLXD5 Single-Channel Portable Digital Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package. Featuring pristine 24-bit digital audio clarity, efficient long range UHF transmission and easy-to-use setup features, the SLXD5 is at home on top of your camera or in an audio bag. Scan and deploy frequencies to a compatible SLXD wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode. A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries. Includes SLXD5 Portable Receiver, a pair of AA alkaline batteries, a non conductive cold shoe mount adapter and a zippered carrying pouch.
Features
• Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
• Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from
a single receiver with user-configurable front-panel controls
• Bright OLED display screen for key system function readouts and remaining battery life
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Rugged metal construction
In The Box
• Zippered Carrying Pouch
• WA311 Non-Conductive Cold Shoe Mount Adapter
• 1/8"-to-1/8" audio cable
• 1/8"-to-XLR (Male) audio cable
• 2 AA Alkaline Batteries
Specifications
Dimensions (H W D): 4.21 2.68 1.0 in, (107 68 25.3 mm)
Weight: 1.8 lb (182 g)
Housing: Aluminum
Power Requirements
Battery: Rechargeable Li-Ion or 1.5 V AA batteries
Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C
RF Input: Spurious Rejection >75 dB
Typical
Impedance: 50 ?
Phantom Power
Protection: Yes
Antenna Type: 1/4 Wave Whip
Audio Output
Audio Frequency Response: 20 Hz 20 kHz, (+1, -3 dB)
Connector Type: 1/8" (3.5 mm), x2
Configuration: Balanced (Mono): Tip=audio +, Ring=audio , Sleeve=ground
Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
Impedance (Camera)
Balanced (Mono) Line: 450 ?
Balanced (Mono) Mic: 240 ?
Dual Mono Line: 400 ?
Dual Mono Mic: 200 ?
Full Scale Output Camera (Balanced Line): 15 dBV
Headphone: 13 mW @ 64 ? Load
