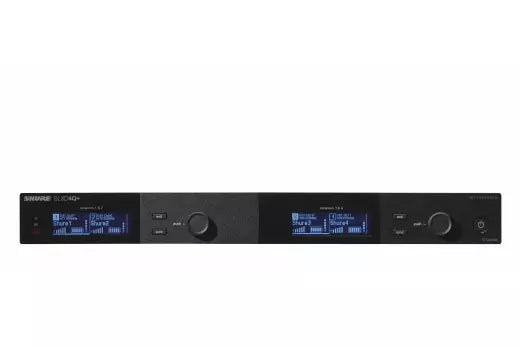

Shure - SLXD4QDAN+ Quad-Channel Digital Wireless Receiver with Dante
Shure - SLXD4QDAN+ Quad-Channel Digital Wireless Receiver with Dante is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The SLXD4QDAN+ is a quad channel digital receiver for use with SLX-D transmitters. With the crystal-clear audio and rock-steady RF that SLX-D provides, the SLXD4QDAN+ features a wide 138 MHz tuning range and easily pair with SLX-D bodypack, handheld and plug-on transmitters. Use audio output summing to set and manage wireless output levels and use RF cascading to quickly scale up compact and powerful multi-channel wireless systems with Dante Digital Audio connectivity for use in every application. SLXDQ4DAN+ Quad Channel receivers - four channels of wireless versatility, wherever required.
Features
• Four channels in one rack space
• Dante Audio Networking, carried on single Ethernet cable
• Wide 138 MHz tuning range
• 32 available channels per frequency band (region dependent)
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Audio Summing matches receiver output to available mixer channels (4,3,2 or 1)
• RF Cascade creates an 8-channel system by linking two SLXD4Q+, no other accessories required
• Bias Voltage power supply management
• Digital predictive switching diversity
• Easy pairing of transmitters and receivers over IR scan and sync
• 4 XLR and 4 1/4" outputs and 2 local ethernet connections
• Compatible with Shure Wireless Workbench® control software
• Rugged metal construction
Specifications
Dimensions (H W D): 1.65 x 15.47 x 5.98 in. (42 x 393 x 152 mm)
Weight: 1750 g (without antennas)
Housing: Galvanized Steel
Power Requirements: 15 VDC @ 1.03 A
RF Input
15 VDC @ 1.03 A
Spurious Rejection: 75 dB (Typical)
Connector Type: BNC
Impedance: 50 ?
Bias Voltage: 15 V DC, 150 mA maximum, per antenna (switchable on-off)
Audio Output
Audio Frequency Response: 20 Hz 20 kHz (+1, -2 dB)
Gain Adjustment Range: 18 to +42 dB in 1 dB steps
Configuration:
1/4" (6.35 mm): Balanced
(Tip=audio +, Ring=audio ,
Sleeve=ground)
XLR: Balanced
(1=ground, 2=audio +, 3=audio )
Impedance:
1/4" (6.35 mm): 1.1 k? (550 ?
Unbalanced)
XLR (line): 500 ? (250 ? Unbalanced)
XLR (mic): 150 ?
Full Scale Output:
1/4" (6.35 mm): +12 dBV Unbalanced
(+18 dBV Balanced)
XLR (LINE setting): +18 dBV
XLR (MIC setting): 12 dBV
Mic/Line Switch: 30 dB pad
Phantom Power Protection:
1/4" (6.35 mm): Yes
XLR: Yes
Cascade Output
Connector Type: BNC
Note: For connection of one additional receiver in the same band
Configuration: Unbalanced
Impedance: 50?
Insertion Gain: 0-2 dB, typical
Networking
Network Interface: 20 Hz 20 kHz (+1, -2 dB)
Network Addressing Capability: DHCP or Manual IP address
Maximum Cable Length: 100 m (328 ft)
