Description

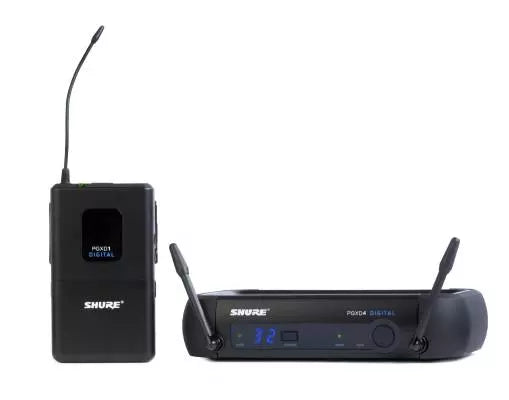

The PGXD14 Wireless Guitar System for guitar or bass features a PGXD4 wireless receiver, PGXD1 bodypack transmitter, and a WA302 instrument cable. Combined, they add the clarity of 24-bit digital audio to the legacy of trusted Shure microphone options for wireless performances.
The rugged PGXD1 bodypack transmitter easily clips onto a belt or guitar strap, and provides you with a 20Hz - 20kHz frequency range, up to 10 hours of continuous use on 2 standard AA batteries (not included), and 200' of wireless freedom.
The PGXD4 receiver offers 24-bit/48kHz accurate sound, auto frequency selection, and greater reliability thanks to its true digital diversity.
The WA302 instrument cable plugs into guitar, bass, or any other 1/4" line-level instrument output.
Features:
PGXD1 Bodypack Transmitter
• Rugged, compact bodypack with belt clip
• 20Hz to 20kHz frequency range captures every nuance of your tone
• Power, mute, and battery status LED
• Up to 10 hours of continuous use from 2 AA batteries
• 200' (60m) operating range
• 26dB of continuously adjustable gain to match variable input levels
PGXD4 Wireless Receiver
• 24-bit / 48kHz digital technology for incredibly accurate sound
• Automatic frequency selection locates a clear channel instantly
• One-touch sync automatically syncs the transmitter and receiver
• True digital diversity delivers rock-solid wireless signal reliability
• Up to 5 systems can be used at once
• 1/4" and XLR audio outputs
• Included padded carrying case for portability and protection
Specifications:
PGXD1 transmitter with WA302 Instrument Cable
Audio input level: +10 dBV maximum, at minimum gain setting -16 dBV maximum, at maximum gain
Gain adjustment range: 26dB
Input impedance: 1M
RF Output Level: 10 mW maximum (dependent on applicable country regulations)
Dimensions (HxWxD): 108mm x 64mm x 19mm (4.25" x 2.50" x 0.75")
Weight: 128g (4.5oz.) without batteries
Housing: Molded polycarbonate case
Battery Life: Up to 10 hours
PGXD4 receiver
Dimensions (HxWxD): 40mm x 181mm x 104mm (1.6" x 7.125" x 4.1")
Weight: 289g (10.2oz.)
Housing: ABS
Audio Output Level (ref. 38kHz deviation, 1kHz tone): XLR connector (into 3000 load): -2.5dBV 1/4" connector (into 10000 load): +10 dBV
Impedance:
XLR: 50?
1/4": 50?
Sensitivity: -102 dBm @ 10-5 BER
Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
