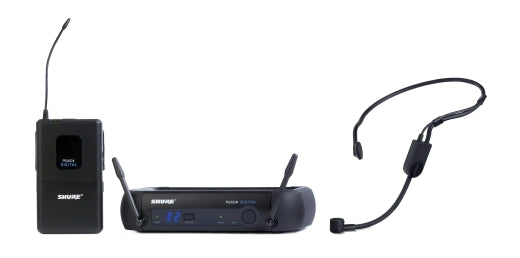

Shure - PGXD14/PGA31 Digital Wireless Headset Microphone System

The PGX Digital Vocal Wireless System adds the clarity of 24-bit digital audio to the renowned PGX line of Shure wireless products. Offering tailored wireless solutions for vocalists, guitarists, and presenters, PGX Digital combines the trusted legacy of Shure microphones with state of the art, 24-bit digital wireless technology that delivers strong, clean RF performance. The result is wireless audio that sounds like wired, rock-solid RF signal, and simple setup and operation.

The rugged PGXD1 bodypack transmitter easily clips onto a belt or guitar strap, and provides you with a 20Hz - 20kHz frequency range, up to 10 hours of continuous use on 2 standard AA batteries (not included), and 200' of wireless freedom.

The PGXD4 receiver offers 24-bit/48kHz accurate sound, offers technology for incredibly accurate sound, auto frequency selection, and greater reliability thanks to its true digital diversity.

The PGA31 performance headset microphone for general, speaking and performance use is engineered to provide maximum versatility and reliable performance in a wide array of conditions at an affordable price. The wearable design offers improved comfort and a secure fit for hands-free operation in any situation, while the unidirectional (cardioid) pickup pattern provides excellent off-axis rejection for higher gain-before-feedback when using a stage monitor.

Features:

PGXD1 Bodypack transmitter
• Rugged, compact bodypack with belt clip
• 20Hz to 20kHz frequency range captures every nuance of your tone
• Power, mute, and battery status LED
• Up to 10 hours of continuous use from 2 AA batteries
• 200' (60m) operating range
• 26dB of continuously adjustable gain to match variable input levels

PGXD4 Wireless Receiver
• 24-bit / 48kHz digital technology for incredibly accurate sound
• Automatic frequency selection locates a clear channel instantly
• One-touch sync automatically syncs the transmitter and receiver
• True digital diversity delivers rock-solid wireless signal reliability
• Up to 5 systems can be used at once
• 1/4" and XLR audio outputs

Specifications:

PGXD1 transmitter
Audio input level: +10 dBV maximum, at minimum gain setting -16 dBV maximum, at maximum gain
Gain adjustment range: 26dB
Input impedance: 1M
RF Output Level: 10 mW maximum (dependent on applicable country regulations)
Dimensions (HxWxD): 108mm x 64mm x 19mm (4.25" x 2.50" x 0.75")
Weight: 128g (4.5oz.) without batteries
Housing: Molded polycarbonate case
Battery Life: Up to 10 hours

PGXD4 receiver
Dimensions (HxWxD): 40mm x 181mm x 104mm (1.6" x 7.125" x 4.1")
Weight: 289g (10.2oz.)
Housing: ABS
Audio Output Level (ref. 38kHz deviation, 1kHz tone): XLR connector (into 3000 load): -2.5dBV 1/4" connector (into 10000 load): +10 dBV
Impedance:
XLR: 50?
1/4": 50?
Sensitivity: -102 dBm @ 10-5 BER
Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
