Shure | SKU: PA821B

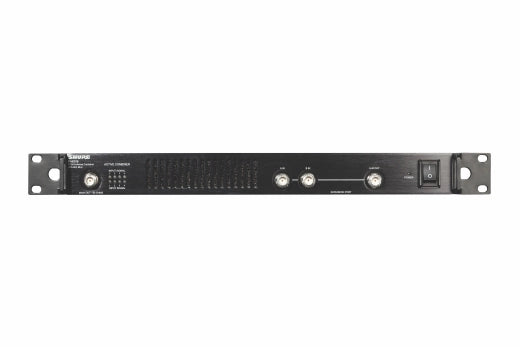

Shure - PA821B 8-Channel Active Antenna Combiner for PSM300, PSM900 and PSM1000

Name: Shure - PA821B 8-Channel Active Antenna Combiner for PSM300, PSM900 and PSM1000
Brand: Shure
SKU: PA821B
Price: 6779.00 CAD
Availability: OutOfStock

$6,779.00

This product is not currently available online. Contact us to order this product or for more information.

50 years of expertise

Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.

Shipping

Shipping is free for all purchases of $249 or more.

Delivery policy

We offer free shipping on most products of $ 249.00 and over.

Free shipping is not valid for remote regions such as Nunavut, Yukon, Northwest Territories.

Due to size, weight or destination, some items will not qualify for free shipping.Métronomie ships all items uninsured. The risk of shipping loss or damage is the sole responsibility of the customer. The products are available within the limits of available stocks.

Métronomie provides dispatch or delivery, it will endeavor to ship or deliver any ordered product as soon as possible and within the time specified, if any. However, you understand that Métronomie will not be held responsible for delays in shipment or delivery.

Questions/Contact

Please call our toll-free web store customer support line at 1-418-724-8088, or email metronomie@gmail.com with any questions, suggestions or concerns.

BEST PRICE GUARANTEE!

If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.

Payment and security

Payment methods

Your payment information is handled securely. We do not store or have access to your credit card details.

Description

The PA821B active broadband antenna combiner streamlines the simultaneous operation of many PSM systems at a venue. The PA821B combines the RF outputs from up to eight PSM transmitters into one RF output to feed a single transmit antenna. This provides significantly improved reception quality due to reduced intermodulation distortion and dropouts due to multipath interference. The PA821B operates from 470MHz to 865MHz and is compatible with the Shure PSM300, PSM900 and PSM1000 IEM systems.

Features
• Combines up to eight PSM transmitters to a single antenna set for improved RF networking & reduced rack clutter
• Wideband operation (470-865 MHz)
• Quieter, Temperature-sensitive fan power for significant reductions in ambient unit noise and heat
• 8 Input LED Signals (green when active; off when inactive)
• LED indications of signal presence and signal overload
• Daisy-chain up to 2 combiners with the expansion port

Specifications
RF Frequency Range: 470-865 MHz
Impedance: 50 ?
Operating Temperature Range: ?18 °C (0 °F) to 63 °C (145 °F)
Power Requirements: 100 to 240 V AC, 50-60 Hz
Current Drain: 1.59 A (referenced at 100 V AC) (159 VA)
Power Consumption: 143 W max.

RF
Input Connector Type: BNC
Configuration: Active
Impedance: 50 ?
RF Gain: 0 dB (2 dB)
LED Indicator Min. Detection Threshold: 2.5 dBm
LED Indicator Overload Threshold: >24 dBm

Main Output
Connectory Type: BNC
Impedance: 50 ?

Expansion Port
Connector Type: BNC
Configuration: Passive
Impedance: 50 ?
Insertion Loss:
