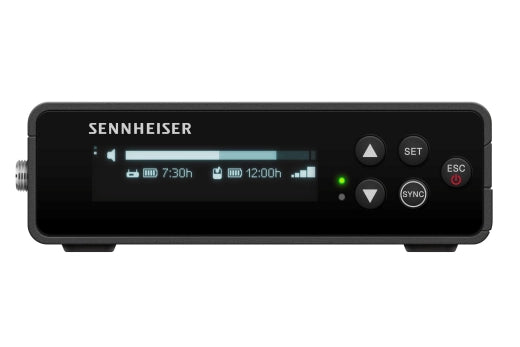

Sennheiser - EW-DP EK Digital Portable Single Channel Receiver (Q1-6: 470.2 - 526 MHz)
Sennheiser - EW-DP EK Digital Portable Single Channel Receiver (Q1-6: 470.2 - 526 MHz) is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at Rimouski
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more*
-
Processing: All orders are prepared and shipped within 24 hours (Monday to Friday).
-
Shipping Time: Delivery typically takes 3 to 7 business days. For faster delivery, please select Express Shipping at checkout.
- *Certain regions and products are excluded from free shipping due to size, weight, or destination.
Sennheiser - EW-DP EK Digital Portable Single Channel Receiver (Q1-6: 470.2 - 526 MHz) is backordered and will ship as soon as it is back in stock.
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
EW-DP is the digital successor of the G4 portable sets. It is a versatile and feature-rich system for videography, filmmaking, newsgathering and any other audio for video application in which reliability and simplicity are key.
The EW-DP EK Single Channel Digital UHF Receiver is for use with EW-D SK bodypack, EW-D SKM-S handheld, and EW-D SKP plug-on transmitters.
Features
• Fully digital UHF wireless microphone system for video applications
• Integrated Bluetooth for synchronization and control
• Smart Notifications for troubleshooting and system guidance
• Intelligent battery management provides operating time (hours:minutes)
• Extended battery life: up to 12h on transmitter, 7h on receiver
• Magnetically stackable components for versatile mounting
• Industry leading 134 dB dynamic range for distortion free transmission
• Up to 56 MHz bandwidth for flexibility in any RF environment
• Exceptionally low latency (1.9 ms)
• External charging and powering via USB-C (receiver only)
• Smart Assist app for monitor & control
• Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)
In the Box:
• EW-DP EK digital portable single channel receiver
• Mounting kit (Mounting plate, cold shoe, belt clip & screws)
• BA 70 li-ion battery & (2) AA battery
• Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
• Locking 3.5 mm TRS plug to XLR plug cable
• USB-C charging cable
Specifications
EW-DP EK
Input voltage: ~ 1.8 - 4.35 V
Input current: Typ. < 250 mA / Max. < 400 mA (BA 70)
Transmit power (radiated): BLE: max. 10 mW EIRP
Audio output power: < 2 dBV max. (high level) / < 4dBU max. (high level)
Headphone Output: < 50 mW into 16 Ohms
Dimensions: 86 x 67 x 28 mm (3.39" x 2.64" x 1.1")
Weight (without antennas and power supply): approx. 140g
