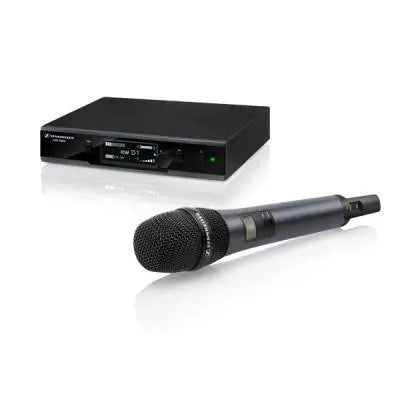

Sennheiser - Digital Wireless Vocal Handheld Set with E835 Mic

Overview:

HD Live sound, highest range and the choice of various microphone heads from the renowned evolution series: with the digital D1 VOCAL SET, every singer has a system whose parts are perfectly attuned to one another. Intelligent channel back-up allows
co-existence with Wi-Fi and Bluetooth. The system operates in a license-free 2.4 GHz band and can be monitored via remote control iOS and Android app. It can run up to 15 output lines in parallel and independently adjust the sensitivity of every transmission.

The system comes in a rugged transport case consisting of an EM D1 1/2 19 rackmount receiver, an SKM D1 handheld transmitter, a microphone clamp, power supply, battery holder and 2 AA Evolution wireless D1 Vocal-Set with the legendary evolution e835 cardioid caspule and mute-switch for live stage use.

Evolution wireless D1 makes no compromises when it comes down to reliability, sound quality or user-friendliness. It is the number one choice for every gig and live event when you need to simply rely on pure brilliance!

FEATURES:
• Choice of various microphone heads from the renowned evolution series
• Up to 15 compatible channels in license-free 2.4 GHz band
• Automatic frequency management
• Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth
• Audio effects: equalizer, de-esser, automatic gain control
• iOS & Android app for remote control and monitoring of the system
• Sturdy metal housing

SPECIFICATIONS:

SYSTEM
• Frequency response: 20 to 20.000 Hz
• Dynamic range: > 135 dB (A)
• THD, total harmonic distortion: typ. < 0,1 %
• Audio sampling: 24 bit/48 kHz
• Signal-to-noise ratio>: = 105 dB (A)
• RF frequency range: 2,400 to 2,483.5 MHz
• Modulation: GFSK with back channel
• Transmission method: TDMA, time diversity, frequency diversity, fast switching antenna diversity
• Latency: 3.9 ms
• Audio codec: APT-X Live
• Operating temperature: 10 C to +55 C
• Storage temperature: 20 C to +70 C (The temperature range is influenced by the battery characteristics)

SKM D1
• Frequency response: 50 to 20,000 Hz
• RF output power: adaptive, up to 100 mW (country-specific)
• Display: LCD
• Weight: approx. 280 g incl. microphone head
• Input sensitivity: automatic sensitivity adjustment
• Battery Specification: 2 x AA size battery (1.5 V), Operating time: typ. 6 h
• Accupack: BA 10 (Li-Ion, 3.7 V), Operating time: typ. 11 h (optional accessory)

EM D1
• Latency: multi-frequency targets
• RF sensitivity: < -90 dBm
• RF output power: back channel 10 mW/100 mW (country-specific)
• Audio output: Mic/line level switch 24 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
• Low-cut filter: 3 dB at 120 Hz
• Equalizer: 7-band graphic equalizer
• Automatic gain control (AGC): compression/expansion with automatic make-up gain function
• Display: LED
• Connection: XLR/ 1/4" (6.3 mm) jack
• Antenna connector: 2 x Rev-SMA
• Network socket: RJ45
• Network protocol: Media Control Protocol, TCP/IP IPv4 (DHCP, Manual)/IPv6
• Power supply: 12 V DC hollow jack
• Current consumption: 350 mA
• Weight: approx. 824 g

SK D1
• RF output: poweradaptive, up to 100 mW (country-specific)
• Connection: 3.5 mm jack socket, lockable
• Weight: approx. 85 g
• Input sensitivity: automatic sensitivity adjustment
• Battery Operating time: typ. 6 h
• Accupack: BA 30 (Li-Ion, 3.7V), Operating time: typ. 11 h
• MicrophoneFrequency response: 50 to 20,000 Hz
• Max. input level: 2.2 V RMS
• LineFrequency response: 20 to 20,000 Hz
• Max. input level: 3.3 V RMS
• Input impedance: 1 M?

INCLUDES:
• EM-D1 rackmount receiver
• SKM-D1 handheld transmitter
• MZQ microphone clamp
• NT-12 power supply
• Transport Case
• User Manual
