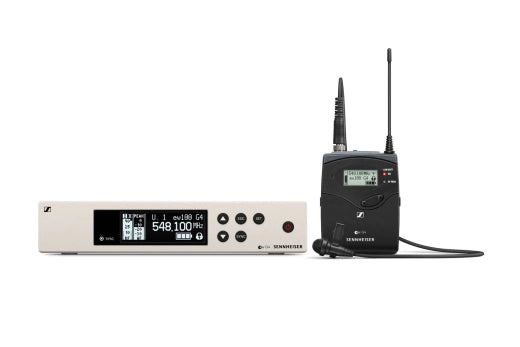

Sennheiser - EW 100 G4-ME4-G Lavalier Set (566 - 608 MHz)

The perfect choice for moderators and presenters: Robust bodypack transmitter and unobtrusive clip-on microphone ME 4 (cardioid) with high speech intelligibility for easy hands-free operation on any stage. The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum.

With up to 100 meters of range and a battery life of 8 hours, it's easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.

Features
• Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators
• Robust bodypack transmitter and unobtrusive clip-on microphone ME 4 (cardioid) with high speech intelligibility for daily use on stage
• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
• Easy and flexible wireless synchronisation between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

Specifications
- Frequency Range: G: 566 - 608 MHz
- Dimensions: Approx. 190 x 212 x 43 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: 0.9 %
- Weight: Approx. 980 g
- Signal-to-noise ratio: 110 dBA
- Switching bandwidth: up to 42 MHz
- Peak deviation: +48 kHz
- Nominal deviation: +24 kHz
- Modulation: Wideband FM
- Power supply: 12 V DC
- Antenna connector: 2 BNC sockets
- Current Consumption: 300 mA
- Adjacent channel rejection: Typically 65 dB
- Intermodulation attenuation: Typically 65 dB
- RF sensitivity: 2.5 uV for 52 dBA eff S/N
- Squelch: low: 5 dBuV middle: 15 dBuV high: 25 dBuV
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: True diversity
- Blocking: 70 dB
- Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

Equaliser
- Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)

Audio Output
- 6.3 mm jack socket (unbalanced): +12 dBu
- XLR socket (balanced): +18 dBu
