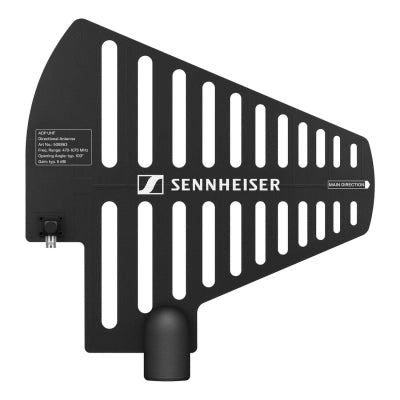

Sennheiser - ADP UHF Passive, Directional External Paddle Antenna (470 - 1075 MHz)
Sennheiser - ADP UHF Passive, Directional External Paddle Antenna (470 - 1075 MHz) is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at Rimouski
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more*
-
Processing: All orders are prepared and shipped within 24 hours (Monday to Friday).
-
Shipping Time: Delivery typically takes 3 to 7 business days. For faster delivery, please select Express Shipping at checkout.
- *Certain regions and products are excluded from free shipping due to size, weight, or destination.
Sennheiser - ADP UHF Passive, Directional External Paddle Antenna (470 - 1075 MHz) is backordered and will ship as soon as it is back in stock.
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The ADP UHF passive directional antenna is the perfect addition for enhancing the wireless performance of your Evolution Wireless Digital system. The 5/8" and 3/8" threads make it easy to mount on any mic stand. The ADP UHF can be connected to the EW-D EM receiver, the EW-D AB antenna booster or EW-D ASA antenna splitter.
Features
• UHF transmission greatly enhances range, reliability and scalability
• Built-in 5/8" and 3/8" threads allow for easy mic stand mounting
Specifications
Frequency range: 470 - 1075 MHz
Apex angle (-3 dB): approx. 100°
Front-to-back ratio: > 14 dB
Gain typ.: 5 dBi
Impedance: 50 ?
Connection: BNC female, no DC path
Threads for tripod mounting: 3/8" and 5/8"
Dimensions: 319 x 310 mm
Weight: Approx. 1100 g (2.43 lbs)
Operating temperature range: -10 °C - +55 °C (14 °F - 131 °F)
Storage temperature range: -20 °C - +85 °C (-4 °F - 185 °F)
Relative humidity max.: 95 % (non-condensing)
