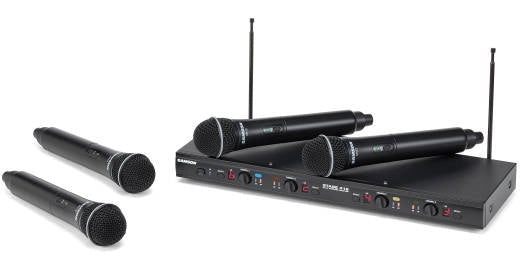

Samson - Stage 412 Frequency-Agile, Quad-Channel Handheld VHF Wireless System - E (173MHz - 198MHz)

Four, Score!
The Samson Stage 412 is a frequency-agile, quad-channel wireless microphone system with four handheld dynamic microphones that transmit to a single rugged metal receiver. Each handheld features Samson's Q6 dynamic mic element, providing crisp, clear sound and reliable VHF wireless performance for presentation, education, house of worship, karaoke and other applications with up to four performers.

Simple Setup
Samson has been dedicated to driving wireless innovation, always striving to make it easier for performers everywhere to cut the cord. The Stage 412's frequency-agile design offers four channels with six operating frequencies per channel across a 173MHz-198MHz frequency range to choose from. In addition, the system's IR sync function allows users to wirelessly match each transmitter to a receiver channel's operating frequency in no time. A 200' operating range provides ample freedom for any presenter or performing group, while each mic transmitter provides exceptional battery life of up to 10 hours via two AA batteries (not included).

Versatile Performance
Featuring the rugged metal SR412 receiver, the Stage 412 is designed for maximum durability and versatility. Its back panel provides four 1/4" outputs, as well as three balanced XLR outputs, allowing connection to a mixer or powered PA speaker. The 1/4" outputs send each channel separately, while the XLR outs are dedicated to send single output mixes of Channels A/B, Channels C/D and all four. Front panel volume control on each channel lets you find the perfect blend between each performer.

VHF Operation
The Stage 412 operates in the reliable VHF frequency spectrum, which has become significantly less crowded with the advancement of digital TV. And it's free from the upcoming FCC 600MHz transition.

Features
Stage 412 Wireless System
• Quad-channel VHF (173MHz-198MHz) wireless system
• Six operating frequencies per channel
• Up to three simultaneous systems (region dependent)
• IR sync wirelessly matches receiver and transmitter frequency
• 200' (60m) operating range (line-of-sight)
• AC adapter included
SR412 Wireless Receiver
• Rugged metal chassis
• Dedicated Volume controls for each channel
• Four 1/4" independent channel outputs
• Three balanced XLR mixed outputs
VH12 Handheld Transmitters
• Four Q6 Dynamic Microphone capsules
• Each offers up to 10 hours of operation via two AA batteries (not included)

Specifications
Stage 412 Wireless System
Operating Frequency: VHF 173MHz-198MHz
Microphone Channels: 4
Frequencies per Channel: 6
Operating Range: 200' (60m)
Frequency Response: 80Hz-15kHz
Tone Key Frequency: 30kHz
SR412 Wireless Receiver
Dynamic Range: 100dB
Maximum Output: 1.37V
Output Connectors: Two 1/4" (6.3 mm) unbalanced, three XLR balanced
Audio Output Levels: -12dB
Power Supply: 100-240V, 50/60Hz, 0.4A, Output: DC 15V, 800mA
Dimensions: 17" x 6.75" x 1.5" (430mm x 170mm x 40mm)
Weight: 3.08lb (1.4kg)
VH12 Handheld Transmitters
Microphone Element: Q6 Dynamic
Pickup Patter: Cardiod
RF Power Output: 10mW
Typical Battery Life: 10 hours
Current Consumption: 120 mA typical
Dimensions: 2.16" x 10" (55mm x 255mm)
Weight: 0.48lb (0.22kg)
