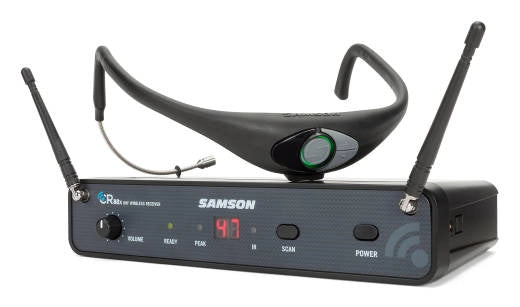

Samson - Airline 88x/AH8 Headset Wireless Microphone System

Audio Agility. Physical Freedom.
The Samson AirLine 88x AH8 Wireless Headset system offers true wireless freedom without the inconvenience of a beltpack or cable. Featuring a lightweight, water-resistant micro transmitter headset with a secure yet comfortable fit, this frequency-agile UHF wireless system provides high definition sound, premium reliability and a 300'(91.4m) operating range.

Wireless Innovation
The integrated design of the AH8 Headset combines a micro transmitter and adjustable gooseneck into a low-profile headset that molds to the shape of your head. The headset also features an internal 8-hour rechargeable lithium ion battery, easily accessible Gain and Mute controls, and IR sync wirelessly match the receiver and transmitter frequency.

Fitness Focus
Designed to meet the demands of Yoga, Pilates, Zumba and cycling instructors, the AH8 Headset features water-resistant components for protection against perspiration and the elements, including a marine-grade stainless steel gooseneck and AE50X micro-miniature microphone capsule. The capsule's cardioid pickup pattern provides excellent isolation from stray and unwanted noise for clear and intelligible speech.

Fitness Focus
Designed to meet the demands of Yoga, Pilates, Zumba and cycling instructors, the AH8 Headset features water-resistant components for protection against perspiration and the elements, including a marine-grade stainless steel gooseneck and AE50X micro-miniature microphone capsule. The capsule's cardioid pickup pattern provides excellent isolation from stray and unwanted noise for clear and intelligible speech.

The True-diversity design minimizes dropouts to provide clear wireless reception for up to a 300' performance range. Tone-key and auto-mute circuitry ensure that only the audio signal from the AH8 transmitter reaches the receiver, automatically muting the system when the transmitter is out of range to prevent unwanted noise from entering the signal path.

The rear panel includes balanced (XLR) and unbalanced (1/4") outputs for connections to an amplifier or sound system. For classes with more than one instructor or facilities with multiple studios, up to eight systems per frequency band can be used simultaneously.

System Features
• 100 operating channels across 25 MHz bandwidth
• 300' maximum operating range
• Rackmount kit included
• Infrared link locks the receiver and transmitter to the same channel

CR88x Wireless Receiver Features
• True diversity design minimizes dropouts
• Tone-key and auto-mute functions eliminate background noise during dropouts
• Balanced XLR and unbalanced 1/4" outputs

AH8 Headset Transmitter Features
• Integrated headset mic and transmitter (no beltpack or cable required)
• Comfortable design forms to the user's head
• Water-resistant materials; sealed circuit board
• Rechargeable Lithium-ion Battery operates for up to 8 hours
• Tri-color LED indicator - Low Battery, Charging, Muted, Normal

Specifications
System
Working Range: 300' (100m) line of sight
Audio Frequency Response: 50 Hz - 15 kHz
T.H.D. (Overall): < 1% (@AF 1 kHz, RF 46 dBu)
Dynamic Range: > 100 dB A-weighted
Signal to Noise: > 95 dB
Operating Temperature: -10C (14F) to +60C (+140F)
Tone Key Frequency: 35 kHz
AH8 Headset Microphone Transmitter
Microphone Element: Condenser Mic
Microphone Polar Pattern: Unidirectional
Input Gain Range: 20dB
RF Power: 10mW EIRP
Power Requirements: 3.6V 500mAh, Lithium Ion rechargeable battery
Battery Life: 8 hours
Included Accessories: 4 foam windscreens, 1 stainless steel
windscreen, rubber headband
CR88x Receiver
Audio Output Level - Unbalanced: +14 dBu
Audio Output Level - Balanced: +9 dBu
Audio Output Impedance - Unbalanced: 810 Ohms
Audio Output Impedance - Balanced: 240 Ohms
Sensitivity: -100 dBm / 30 dB sinad
Image Rejection: > 50 dB
Operating Voltage: 15 VDC 200mA
Dimensions (LxWxH) 8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm
