Samson - MD2 Pro Stereo Passive DI Box
Samson - MD2 Pro Stereo Passive DI Box is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description

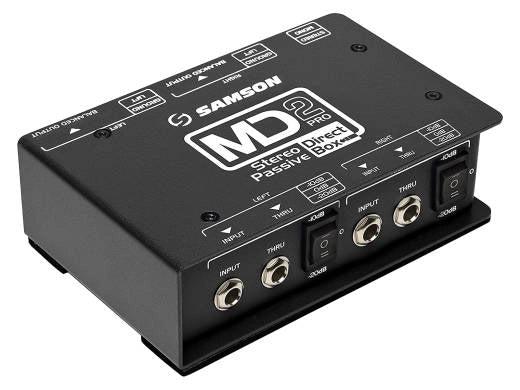

Samson's MD2 Pro Stereo Passive Direct Box combines two premium direct boxes in a single case. Rugged, roadworthy construction and two shielded transformers provide high-quality signal connection solutions for a variety of live sound and recording applications. The MD2 Pro is perfect for converting unbalanced stereo line level or instrument signals from keyboards, electronic drum kits, acoustic-electric guitars and more.
Custom STLX Transformers
The MD2 Pro features two of Samson's STLX Mu-Metal shielded transformers that deliver an extended, flat frequency response with ultra-low distortion and superior protection against hum and RF interference. The MD2 Pro's balanced outputs provide clean signals that are less susceptible to noise than unbalanced lines, allowing for longer cable runs. The MD2 Pro also includes a 3-position 0dB/-10dB/-20dB attenuation switch for each input to toggle between line and speaker level signals, as well as a Stereo/Mono sum switch.
Thru Jack
The MD2 Pro's Thru jacks enable you to tap off the signals from the inputs and pass the signals to amplifiers or monitors without affecting the original audio. This can eliminate the need for miking guitar amplifiers, which depending on your application may be preferable, especially as more musicians are using in-ear monitors.
Roadworthy Construction
Housed in a 14-gauge steel chassis, the MD2 Pro is built to withstand the abuse of the most demanding live tours. Its rigid outer shell protects all the MD2 Pros internal connections, switches and solder joints from failure, ensuring quiet, reliable performance.
Details
Type ................................................. Stereo passive direct box
Frequency Response........................ 18Hz to 40kHz 0.1dB
Maximum Input................................ +20dBu 0.35% THD
Dynamic Range................................ >100dB @ Balanced Output
Noise Floor....................................... -117dB
Total Harmonic Distortion................ 10k (Mono switch position)
Output Impedance........................... 250? 20%
Transformer ..................................... 2 x Samson STLX Faraday shielded
Transformer Ratio............................ 15:1
Input PAD Switch............................. 0dB, -10dB, -20dB
Ground Lift....................................... 2 x Disconnects XLR pin-1 (Output)
Stereo/Mono Switch......................... Sums stereo inputs to both outputs
Connectors ...................................... 2 x 1/4 unbalanced (Input & Thru)
2 x XLR (Balanced Output)
Construction.................................... 14-gauge steel chassis
Product Weight ................................ 2.08lb (946g)
Gift Box Dimensions........................ 6.5 x 4.75 x 2.25
(165mm x 121mm x 57mm)
Gift Box Weight................................ 2.27lb (1030g)
