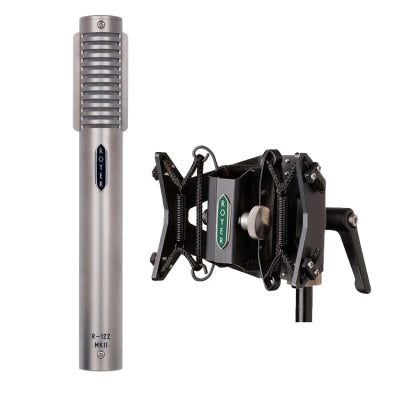

Royer - R-122 MKII Active Ribbon Microphone and RSM-SS1 Sling-Shock Bundle

R-122 MKII
The R-122 MK II is a second-generation design of the venerable R-122 active ribbon mic. It shares the original mic's ribbon geometry, transformer and impedance matching circuitry with condenser-like output levels that allow the R-122 to be used on even the quietest sound sources. It can also be paired to virtually any preamplifier.

The R-122 MKII takes the R-122 to a whole new level, delivering unprecedented flexibility for ribbons with the addition of a switchable -15 dB pad and a switchable bass-cut filter. The switches are completely out of the circuit when disengaged so when both are off, the microphone is for all purposes an original R-122. The switches are located on the back of the microphone and recessed to prevent accidental activation.

Sling-Shock RSM-SS1
The Sling-Shock™ (Patent No. 8,571,250) is a revolutionary departure from traditional shockmount designs. Royer has done away with unreliable rubberised parts and elastic cords, producing a durable shockmount that provides exceptional isolation from vibration, rumble and resonances.

Royers proprietary system of non-resonant nylon cable and damped steel springs acts to isolate the microphone from vibrations induced from the microphone stand. These vibrations appear as rumble and/or low-grade noise across the bandwidth and are greatly reduced by use of the Sling-Shock.

Sling-Shocks also eliminate the self-resonance that traditional shockmounts can generate on high SPL applications like close-miked electric guitar. Shockmount self-resonance creates harmonic interference at various frequencies - Sling-Shocks eliminate the issue. The Sling-Shock's superior vibration-reduction capabilities and lack of self-resonance allow engineers to capture performances free of vibration-related interference across the bandwidth.

The Sling-Shock RSM-SS1 is sized to fit Royer's 1-inch diameter ribbon mics; R-121, R-122 MKll, R-122V and SF-12 ribbon microphones. The RSM-SS1 will work with any cylindrical microphone measuring approximately one inch in diameter (+/- 1/8 inch).

R-122 MKII Features
• Phantom powered circuitry provides high output and impedance matching
• -15 dB pad before the mics electronics gives more headroom when activated.
• Bass cut filter reduces proximity effect and bass below 100 Hz when activated
• High SPL Capabilities
• No distortion up to maximum SPL rating
• Extremely low residual noise
• Ribbon element is not affected by heat or humidity
• Absence of high frequency phase distortion
• Equal sensitivity from front or back of element
• Consistent frequency response regardless of distance
• Rear side of mic records slightly brighter when three feet or closer to sound source

Sling-Shock RSM-SS1 Features
• Superior isolation from vibration, shock and rumble
• Lack of self-resonance on high SPL applications
• Felt-lined, scratch-free microphone chamber holds mic securely
• No rubberised parts to degrade or stretch
• Built in microphone cable clip minimises cable-related vibration
• Flexible for easy microphone positioning
• Lifetime manufacturers warranty

R-122 MKII Specifications
Acoustic Operating Principle: Electrodynamic pressure gradient with active electronics
Polar Pattern: Figure-8
Generating Element: 2.5-micron aluminum ribbon
Magnets: Rare Earth Neodymium
Frequency Response: 30 - 15,000 Hz 3 dB
Sensitivity: -36 dB (re. 1v/pa 1 dB)
Switchable Pad: -15 dB
Switchable Bass Cut: 100 Hz (6 dB per octave)
Self-Noise: < 18 dB
Output Impedance: 200 Ohms, balanced
Output Connector: Male XLR 3-pin (Pin 2 Hot)
Rated Load Impedance: 1K-Ohm minimum
Maximum SPL: 135 dB @ 30 Hz
Power Requirements: 48-Volt Phantom Only
Supply Current: 4 mA
Dimensions: 206mm L X 25mm W (8 1/8 L X 1 W)
Weight: 309 grams (10.9 oz)
Finish: Burnished Satin Nickel
