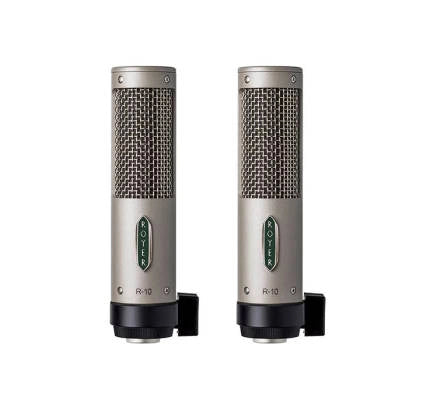

Royer - R-10 Studio/Live Ribbon Mic - Matched Pair

The Royer R-10 is a passive mono ribbon microphone designed for use in the studio and on live stages. Hand-built in Royer's Burbank, California factory, the R-10's sound and performance are all-Royer and it handles SPLs of up to 160 dB @ 1 kHz. The R-10's compact size and mounting system allows for flexible, unobtrusive positioning.

The R-10's 2.5-micron aluminum ribbon element is formed with a patented direct-corrugation process and is protected by a 3-layer windscreen system and internally shock-mounted ribbon transducer. The ribbon transducer is wired for humbucking to reject electromagnetically induced noise.

The R-10's built-in windscreen provides superior protection from air blasts and plosives. It also reduces proximity effect (bass buildup from close miking) so guitar cabinets and acoustic instruments can be close-miked with less bass buildup. The R-10's internally shockmounted ribbon transducer isolates the ribbon element from shocks and vibrations, increasing the ribbon element's durability.

The R-10 utilizes a David Royer custom designed transformer for high overload threshold, minimizing saturation at even extremely high sound pressure levels. You'll never overload an R-10! The mic's open grill design minimizes standing waves and associated comb-filtering effects and its smooth frequency response, phase linearity and lack of self-distortion make it ideal for all digital recording and live sound formats.

The R-10 is excellent on brass and can handle close-miked trumpets, trombones and other brass instruments. Brass records naturally on an R-10, as bright as the musician plays but without the added sizzle or harshness commonly experienced when condenser mics are used on brass instruments. Drums are full bodied with realistic (not over-hyped) transient response, and the R-10's figure-8 pattern conveys superb ambience and depth when used for room miking applications. A compressed R-10 in front of the kit sounds huge and punchy. R-10 recordings of violins, ukuleles, steel-stringed and nylon-stringed acoustic guitars, banjos and other stringed instruments are warmth and natural and fit into mixes easily. "Airing out" the recorded track by opening up a bit of 12K with an EQ often gives surprisingly good results. Vocals record record warm and naturally on an R-10, and the EQ-friendliness of the R-10 allows for dialing in completely different sounds with liberal use of EQ. Try experimenting with cutting bass at 100 Hz and opening up 12K by 3 to 6 dB (or more!)

Features:
• High SPL capabilities for electric guitar, brass and other close miking applications
• Multi-layered wind screen provides superior protection to ribbon element
• Internally shock-mounted ribbon transducer gives increased durability
• Passive design and custom transformer minimize high SPL overload
• Hum-bucking transducer design delivers extremely low residual noise
• Ribbon element not affected by heat or humidity
• Absence of high-frequency peaks, "ringing" and phase shifts
• Equal sensitivity from front or back of the element

Recommended Applications:
• Close miking in the studio and on live stages
• Electric & acoustic guitars
• Drum overheads, kick drum (see manual for position), room miking
• Percussion instruments
• Brass, horn sections
• Strings - solo & sections
• Acoustic piano
• Vocals

Specifications:
• Acoustic Operating Principle: Electrodynamic pressure gradient
• Polar Pattern: Figure-8
• Generating Element: 2.5-micron aluminum ribbon
• Magnets: Rare Earth Neodymium (Grade 52)
• Frequency Response: 30Hz-15,000Hz +/- 3dB
• Sensitivity: -54dBv (re. 1v/pa)
• Output Impedance: 100 Ohms
• Maximum SPL: 135dB @ 50 Hz, 160dB @ 1kHz
• Recommended Load Impedance: 700 Ohms (or greater)
• Output Connector: Male XLR 3-pin (Pin 2 Hot)
• Accessories: Microphone Holder, Mic Sock, Carrying Case
• Microphone: Adjustable Swivel Mount (Black)
