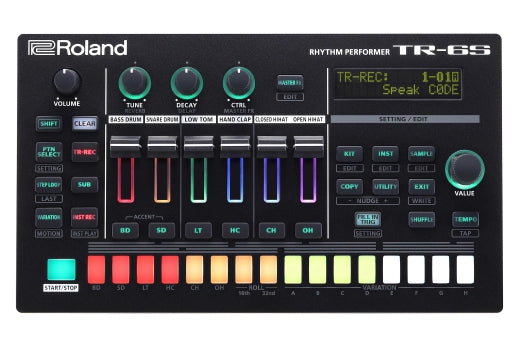

Roland - TR-6S Rhythm Performer

Small Size. Big Beats.

Roland TR drum machines have impacted music for over 40 yearsand they're as influential now as ever. Based on the much-loved TR-8S, the compact and affordable TR-6S has the same speaker-pummeling, window-rattling, body-moving sound of its bigger sibling. Elevate your drum tracks, make beats on the go, and experience the joy of hands-on production. With the TR-6S, the sound of classic tracks, today's trends, and tomorrow's hits are always within reach.

Six tracks of rhythmic bliss.
With the TR-6S, you get six tracks of advanced drum sequencing and the most iconic rhythm sounds in music history - all in a battery-powered box that fits just about anywhere. And like other Roland drum machines, it's fun and inspiring. With the familiar step-sequencer, plus dedicated faders and knobs, it's easy to craft custom beats with visceral, hands-on control.

All the sounds and more.
The TR-6S is filled with authentic recreations of legendary Roland drum machines that have defined genres and driven culture for decades - including the 808, 909, 707, and 606. And these aren't sample packs or cheap knock-offs - they're living, breathing replicas that sound and behave just like their vintage counterparts. Going further, you can mix-and-match these sounds with preset and custom samples and futuristic FM tones, creating exotic hybrid kits that reflect your unique taste and style.

The gold standard in drum programming.
The sound of today's music owes a lot to the classic step-sequencer particularly the "TR-REC" variety found in early Roland drum machines. The TR-6S employs the same tried-and-true approach, enhanced with realtime recording and modern features like sub-steps for ratcheted parts and motion recording for rhythms that move.

Positive effects.
Create punch, space, warmth, or grit with the array of high-quality effects in the TR-6S. Vital compressors and EQs are at your fingertips, along with lush reverb, delay, and modulation effects. Push your creative boundaries with filters, LFOs, and wild new effects that incite sonic mayhem.

Convenience and flexibility.
The TR-6S isa also a high-quality USB audio/MIDI interface, perfect for mobile or minimal production setups. And itfits in even the most space-starved studios or live rigs, so you can turn life into music whenever inspiration strikes.

TR-6S Features
• Six-track version of the TR-8S in a compact and affordable package
• Detailed circuit models of the Roland TR-808, TR-909, TR-606, TR-707, and more
• Large preset sample library with support for custom user samples
• FM sound engine for futuristic tones
• Mix and match sounds for exotic hybrid drum kits
• Advanced sequencer with sub-steps, flam, step-loop, motion recording, and more
• Runs on four AA batteries or USB bus power
• Also functions as a high-quality USB audio/MIDI interface

Specs

User Drum Kit: 128
User Patterns: 128

Step Sequencer
• 6 instrument parts
• 16 steps per 1 variation
• 8 (A - H) variations per 1 pattern
• 2 Fill-in patterns per 1 pattern

INST tone
(Tone can be assigned to each 6 instrument parts freely.)
• BASS DRUM: 11 ACB tones
• SNARE DRUM: 8 ACB tones
• TOM: 19 ACB tones
• RIM SHOT: 3 ACB tones
• HAND CLAP: 5 ACB tones
• HI HAT: 8 ACB tones
• CYMBAL: 8 ACB tones
• PERCUSSION: 24 ACB tones
• FM: 66 tones
• PRESET SAMPLE: 300 tones or greater
• USER SAMPLE (imported form SD CARD for playback): Avarable format: WAV, AIFF
• Total time for all samples: Approximately 600 sec (at 44.1 kHz, mono)

*The maximum length of a single audio file that can be imported is approximately 180 seconds (at 44.1 kHz).

*Available format of Sample:
WAV 96 kHz maximum/8bits, 16 bits, 24 bits, 32 bits, 32 bits float (mono, stereo)
AIFF 44.1kHz, 48kHz, 96 kHz/8bits, 16 bits, 24 bits, 32 bits, 32 bits float (mono, stereo)

Effects
• INST FX: THRU, HPF, LPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR,
• TRANSIENT, COMPRESSOR, DRIVE, COMP+DRV, CRUSHER, SATURATOR, FREQ SHIFT, RING MOD, SPREAD
• REVERB: AMBI, ROOM, HALL1, HALL2, PLATE, MOD
• DELAY: DLY, PAN, TAPE ECHO
• MASTER FX: HPF, LPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR,
TRANSIENT, TRANSIENT2, COMPRESSOR, DRIVE, OVERDRIVE, DISTORTION, FUZZ,
CRUSHER, PHASER, FLANGER, SBF, NOISE
• Other: SCATTER (as one of AUTO FILL IN function), SIDE CHAIN

Display
• 16 characters, 2 line (backlit LCD)

External Storage
• SD Card (SDHC supported) for backup/restore function and import sample data

Connectors
• PHONES jack: Stereo miniature phone type
• OUT(L/MONO, R) jacks: 1/4-inch phone type
• MIDI(IN, OUT) connectors
• USB port: USB B type (Audio, MIDI)

Power Supply
• Ni-MH battery (AA, HR6) x 4
• Alkaline battery (AA, LR6) x 4
• Obtained via USB port (USB bus power)

Current Draw: 500 mA

Expected battery life under continuous use
• Alkaline battery: Approx. 4.5 hours
• Ni-MH battery: Approx. 5.5 hours (When using batteries having a capacity of 1,900 mAh.)
*This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.

Dimensions: 224(W) x 132(D) x 60.1(H) mm / 8-13/16(W) x 5-3/16(D) x 2-3/8(H) inches
Weight (including batteries): 705 g / 1 lb 9 oz

Accessories
• Leaflet "Read Me First"
• Alkaline battery (AA, LR6) x 4

TR-EDITOR ROLAND CLOUD PACK
FREE TR-EDITOR + SIX MONTHS ROLAND CLOUD PRO MEMBERSHIP + PRO SELECTOR
TR-8S and TR-6S owners! Register your instrument today for a host of free extras including the TR-EDITOR and six months of Roland Cloud Pro membership.

DEDICATED EDITOR APP FOR MAC & PC
The free TR-EDITOR enhances your workflow, reducing menu diving and page scrolling on the TR hardware. Explore a wide range of parameters and controls across five convenient tabs and access all your patterns and kits via the breakout librarian window.

PATTERNS, KITS, AND SAMPLE PACKS
Explore pre-programmed TR-8S patterns and specially designed kits to enhance your own productions. Use them to jam out or familiarize yourself with your TR-8S's powerful feature set. Also make sure to check out Roland Cloud Sample Packs to expand your sound library for either TR.

WHAT'S ROLAND CLOUD?
Roland Cloud is an ever-growing collection of virtual instruments, sounds, samples, and backing tracks, along with Zenbeats - an easy-to-use music-making app that works across desktop, tablet, or phone. If you use software as part of your music production workflow, Roland Cloud offers over 20,000 super-playable sounds to give your music a boost.

WHAT'S ROLAND CLOUD PRO MEMBERSHIP?
Roland Cloud has three paid tiers - Core, Pro, and Ultimate - with each consecutive level offering more instruments and sounds, depending on your needs. A year of Pro membership costs $99, but you can get six months membership completely free when you register your TR-8S or TR-6S.

CHOOSE ANY TWO LEGENDARY INSTRUMENTS
Can't decide which Roland Cloud virtual instruments are best for you? With Pro Selector, you can choose any two Legendary instruments that work best for your style and workflow. Try them all out as you find your favorites.
