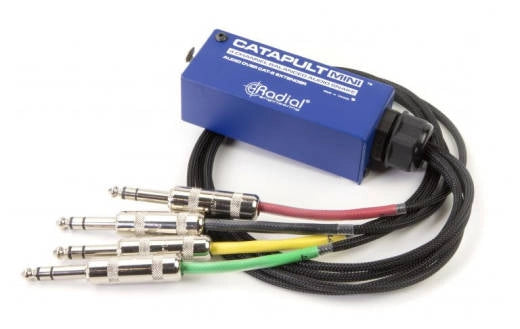

Radial - Catapult Mini TRS 4-Channel Cat 5 Audio Snake
Radial - Catapult Mini TRS 4-Channel Cat 5 Audio Snake is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
Analog Audio Over Cat 5 Wiring
The Catapult Mini System works like a typical four-channel analog audio snake; they allow you to send mic or line-level signals from one location to another without signal loss, noise, or interference, and without any digital audio conversion needed. What makes the Catapult system unique is that it utilizes Cat 5 Ethernet cable, which is widely available, lightweight, and economical. Simply connect a shielded Cat 5 cable between any two Catapult modules and they will use the analog conductors in the cable to deliver four balanced audio lines to any destination.
Utilize Pre-Existing Cable Installations
Because many buildings are already pre-wired for Cat 5, you can take advantage of this to transmit audio between distant rooms without the need to install or supply new cabling. This eliminates the need for bulky and expensive multi-channel audio cable, and allows contractors to benefit from installed network cable and easily connect from one room to another.
Features
• Send four channels of analog audio over a Cat 5/6 cable
• RJ45 Input recieves four channels of analogue audio over Cat 5 or Cat 6 Ethernet cable
• Works with a building's existing cable infrastructure
• Compact and lightweight, yet durable and rugged
• Economical Cat 5/6 cable replaces bulky multichannel audio snakes
Specifications
Audio circuit type: Passive splitter
Frequency response: 7Hz ~ 20KHz
Dynamic range: 140dB
Total harmonic distortion: 0.0005% @ 1kHz
Common Mode Rejection Ratio: > 103dB
Maximum Input: +35dBu
Input/Output Connectors: XLR
Power: Passive, no power required
Construction: 16-gauge steel chassis & outer shell
Size (L x W x D): 4.125" x 1.56" x 1.31" (105 x 40 x 33mm)
Weight:0.85lb (0.4kg)
