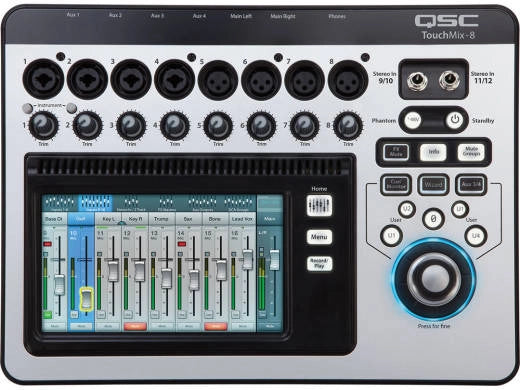

QSC - TouchMix-8 Compact Digital Mixer with Touchscreen

The TouchMix-8 Compact Digital Mixer with Touchscreen from QSC is a 12-input digital mixer that features 8 built-in mic preamplifiers and can be controlled by its integrated touchscreen or wirelessly via an iPad connected to the same wireless network. The mixer is also capable of multi-track recording with sampling frequencies up to 48kHz to an optional external USB hard drive. A USB Wi-Fi adapter and carrying case are included.

QSC TouchMix compact digital mixers are designed for musicians, production professionals and live performance venues that need the power and capability of a large "concert" mixing console in a compact, affordable and easy to use form. TouchMix-8 has the functionality to satisfy demanding professionals combined with a range of features and functions that help the less experienced user achieve quality results.

Key Features:

• 12 Inputs: 4 Mic, 4 Mic/Line (XLR/TRS Combo), 2 Stereo line (TRS), USB 2-track
• Outputs: 4 Aux (XLR), 1 Stereo (TRS), Main R/L (XLR), Cue/Monitor (TRS)
• TRS Aux outs drive wired In Ear Monitors directly
• 4-band full parametric EQ, variable high-pass and low-pass filters on all input channels
• Gate and compressor on all input channels
• 4 stereo DSP effects plus a pitch corrector
• 1/3 octave graphic equalization, limiters, delay and notch filters on Main and Aux outputs
• 8 DCA and 8 Mute groups
• Color, capacitive touchscreen graphical user interface combined with hardware controls for fast operation
• Wizards, info and preset libraries assist you with channel setup, effects selection, and more
• Direct to hard-drive recording and playback of multi-track wave files. Capable of recording all input channels plus a user-selected stereo output pair
• USB Wi-Fi interface and carrying case are included.

Specifications:

Display: 6.1" x 3.5" (156 mm x 90 mm) color TFT, touch sensing

Inputs: 12 total:
- 4x XLR/TRS combo
- 4x XLR
- 2x stereo 1/4" TRS

Outputs:
- 2x main XLR line-level
- 4x aux XLR line-level
- 1x stereo TRS
- 1 stereo cue TRS

Mic & Line Input Processing: 4-band parametric EQ with high/low shelving option, variable 24 db/octave HPF & LPF, gate, compressor

2-Track (USB) & FX Return Processing:2-band shelving EQ, variable 24 dB/octave HPF, gate, compressor

Output Channel Processing:
- Main outputs and auxes 16: 1/3 octave GEQ • Limiter • 4 full-frequency notch filters • Variable 18dB/oct Low-cut and High-cut filters
- Auxes 7/8 & 9/10 (TM-16 only): 4-band PEQ, Limiter • Additional variable 18dB/oct Low-cut and High-cut filters

Recording: 14 tracks, requires USB 3.0 Hard Drive, minimum 7800 RPM

Groups: 8 DCA groups (with mutes), 8 Mute groups, auxiliaries may be used as sub groups

Cue: Selectable AFL or PFL

Effects: 4 professional effects engines including reverb, echo, delay, chorus. 50 factory, 50 user presets,
1 pitch correct (assignable to any mono input channel)

Scene and Preset Memory: Scenes: 130 user-defined scenes, including all mixer parameters may be stored internally or on FAT32 formatted USB Channel and FX Presets: 130 user-defined channel presets and 130 FX presets may be stored internally or on FAT32 formatted USB

External Control: iOS TouchMix app for iPad, iPad mini, iPad Air. Control via Wi-Fi provides access to all mixer functions. Requires iOS 6 or higher.

Wi-Fi: USB Wi-Fi adapter included

Dimensions (HxWxD) 56 mm x 333 mm x 245 mm (2.2 x 13.1 x 9.658 inches)
Weight: 4.3 lb (1.95 kg)

Power: 100-240 VAC, 50-60 Hz

Sampling Frequency: 44.1 / 48 kHz

Internal Processing: 32-bit floating point

Frequency Response: 20 Hz-20 kHz +- 0.5 dB, any input to any output

Dynamic Range: 105 dB

Equivalent Input Noise: -126 dBu
Residual Output Noise: -86 dBu
Crosstalk: -80 dB
S/N Ratio: -94 dB

Maximum Input Level:
+16 dBu (Mic/Line inputs, XLR)
+26 dBu (Mic/Line inputs, TRS)
+22 dBu (Stereo inputs)

Phantom Power: 48V

Included (both models)USB WiFi adapter, soft carrying case, power supply
