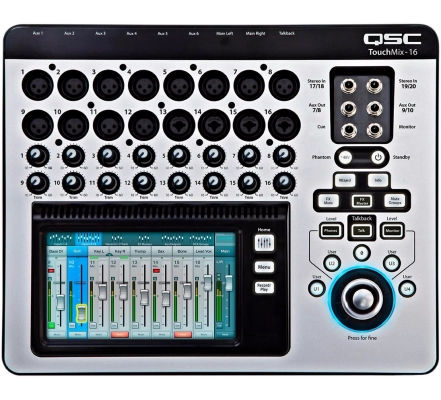

QSC - TouchMix-16 Compact Digital Mixer with Touchscreen

Features:

Great results and easy to use.

• Input channel preset library features over 100 presets developed by experienced concert engineers specifically for live sound applications.
• Wizards assist with input gain adjustment and effects selection and routing.
• On board, multi-language Info system for instant access to the user manual in Chinese Mandarin, English, French, German, Russian and Spanish.*
• Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation.

20 total inputs: 16 mic, (four with XLR/TRS combo connector) and two stereo line (TRS)

• Dedicated talkback mic input
• Stereo Main L/R outputs (XLR)

Ample monitor outputs (eight total) with 6 mono auxiliary mixes (XLR) and 2 stereo auxiliary mixes.

• The 2 stereo aux outputs can drive wired in-ear monitors (IEM) directly.
• Mono auxiliaries may be linked for stereo use.
• Multiple ways to control aux mixes
- Mix on faders*
- Send from channels
- Aux overview of all aux mixes
- Auxiliary mixes may be assigned for Main L/R output for use as sub-groups.

Superb sound quality

• Class-A microphone pre-amps
• 32-bit floating point processing
• 24-bit AD & DA convertors

Input channels are fully-featured:

• Four-band full parametric EQ
• Variable high-cut and low-cut filters
• Gate
• Compressor (with de-esser)
• Gate and compressor assignable Pre or Post EQ*
• User selectable auxiliary pick-off points*

Main and auxiliary outputs feature:

• 1/3-octave graphic EQ (four-band parametric EQ on stereo auxiliaries)
• Limiter
• Delay
• Notch filters

Four professional quality stereo DSP effects. Choose from:

• Two types of reverb
• Mono delay
• Stereo delay
• Chorus
• Pitch-change
• One Pitch Correct processor assignable to any input channel.

Eight DCA and eight mute groups.

Assign / Un-assign Input to Main Mix*

Programmable User-Buttons.*

Save your own channel presets and complete mixer scenes to internal memory or USB device.

Capturing live performance to multi-track has never been easier. Record 22 tracks (all inputs plus a stereo mix) directly to USB hard-drive. Mix down on TouchMix or import into your favorite DAW.

Remote Control

• Complete mixer remote control via free iOS app for iPad, iPhone, iPod Touch.
- Monitor control via iPhone/iPod Touch App.*
- Multiple Wi-Fi connectivity options.*
- Individual devices may be given permissions to access one or more functions.*
- Support for MIDI-over-USB footswitches.*
Security Lockout Modes

USB Wi-Fi interface and carrying case are included.

*Requires 2.1 or higher firmware

Quick Specs:

Display: 6.1" 3.5" (156 mm 90 mm) color TFT, touch sensing
Inputs (Mic/Line): 20
Input (Talkback): One XLR
Outputs: 12
Recording: 22 tracks, requires USB 3.0 HD • FAT32 format • minimum 7800 RPM
Effects: 4 professional effects engines including reverb, echo, delay, chorus, 50 factory, 50 user presets, 1 pitch correct
Scenes: 130 user-defined scenes
Sampling Frequency: Selectable 44.1 kHz or 48 kHz
Phantom Power: 48V, individually switchable per channel

Dimensions (HxWxD): 58 mm x 360 mm x 291 mm (2.3" x 14.2" x 11.5")
Weight: 5.9 lb (2.98 kg)
