PreSonus - StudioLive Series III SE 24 Digital Mixer

Live sound for touring, installations, and houses of worship demands more than just pristine audio and powerful effects - it calls for seamless recording, playback, streaming, remote control, and a fully connected workflow. With StudioLive Series III SE, you get access to capabilities beyond any solution in its class - like seamless multitrack recording, playback and streaming with integrated Studio One Pro and Capture software, remote access mix, console management, and one-click virtual soundcheck.

Designed to inspire and built to perform, StudioLive SE delivers pristine, ultra-low noise studio-quality sound to the stage. Dial in your mix with an arsenal of audio processors and effects, including meticulous digital models of coveted EQs, compressors, limiters, and reverb.

Expand your system and stay industry-ready-StudioLive SE connects effortlessly to networked StudioLive Stage Boxes and any Milan-compatible I/O, while its sleek design, intuitive layout, ergonomic feel, and high-contrast UI maximize comfort and streamline workflow during long sessions.

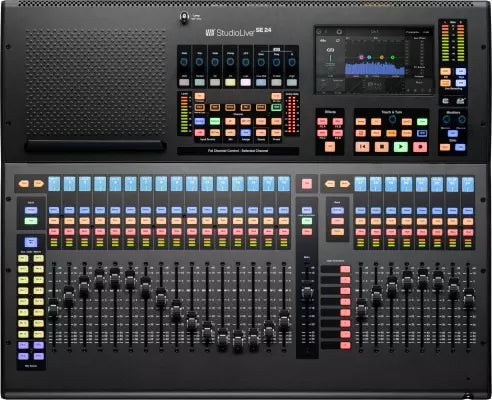

StudioLive® Series III SE 24 Digital Console Mixer - 40-channel, 26-bus digital mixer with 25 motorized faders, a 64x64 USB Audio Interface, and Milan-certified AVB Audio Networking.

- 25 Fully recallable touch-sensitive motorized faders (24 Channel + 1 Main)
- Fixed Fat Channel
- 32 total mic preamps
- 16 (via combo) line inputs plus 2 pairs of balanced stereo 1/4" Aux Inputs
- 16 (12 XLR, 4 1/4" TRS) total mix outputs
- 4 1/4" TRS subgroup outs
- Portable and flexible 40-channel digital console available with 26 mix buses, integrated recording, advanced audio networking, and a complete professional software suite.

Key Features

• FlexMixes and Buses - StudioLive offers nearly infinite mix configuration. Set up 16 FlexMixes as auxes, subgroups, or matrix mixes to match any workflow. Four dedicated effects buses add reverb and delay without affecting monitor mixes, while four subgroups simplify processing for drums, vocals, and more - and with 24 DCAs, group control stays intuitive, flexible, and fast.

• Integrated Recording - The unique 64x64 bidirectional audio interface makes recording individual channels and routing to plug-in racks effortless. Playback streams appear instantly with one button-no extra routing needed. Nothing else makes monitoring live musicians and playback this easy.

• Flexible Routing - With StudioLive, any of four available sources can be patched to any channel. Instantly switch between analog inputs or digital returns (AVB, USB, or SD Card) at the push of a button and route audio freely to networked devices or your computer.

• Customized Configurations and User Settings - Create a custom fader layout with the user layer for fast access to critical channels. Soft patching routes the same source to multiple channels for parallel processing or simultaneous Front of House and Monitor mixing, while Master FX mutes offer instant processing bypass. And user profiles and permissions give administrators full control-so you can lock access to EQ, dynamics, gain staging, scenes, projects, and level limits to keep less experienced operators on track.

• Pristine Sound Quality - Get ultra-clean, transparent sound with PreSonus' XMAX-Remote preamps-pure analog tone with digital recall. Studio-grade 32-bit floating-point DSP delivers smooth, precise processing, while 115 dB A/D-D/A converters and low-jitter clocking ensure best-in-class dynamic range.

What's New In StudioLive Series III SE Digital Mixers

Top Ten New Features:
- Milan-certified AVB audio networking
- 40+ critical bug fixes and improvements
- Free firmware update for all StudioLive Series III Digital Mixers
- Extended Reverb and Limiter parameter sets
- New Reverb presets
- Fat Channel models (all 8 compressor and 7 EQ models from the Fat Channel Collection)
- Integrated software (Capture, UC/Metro, Studio One Pro, QMix-UC, Universal Control) for effortless recording and flexible mixing.
- Flat screen frame maximizes viewability
- New fader cap design for maximum comfort
- New cylindrical encoder design for smooth torque

Specifications

Microphone Preamplifier
Type: 32 XLR Female, balanced (Combo connectors)
Frequency Response to Main Output (at unity gain): 20-20 kHz, +/-0.5 dBu
Input Impedance: 1 k?
THD to Main Output: < 0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
Gain Control Range (+/-1 dB): 0 dB to +60 dB
Maximum Input Level (unity gain): +12 dBu
Phantom Power (+/-2 VDC): 48 VDC, switchable per channel

Line Inputs
Type: (16) 1/4" TRS Female, balanced (Combo connectors)
Frequency Response to Main Output (at unity gain): 20-20 kHz, +/-0.5 dBu
Input Impedance: 10 k?
THD to Main Output: < 0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
Maximum Input Level: +18 dBu

Tape Inputs
Type: RCA Female, unbalanced (stereo pair)
Maximum Input Level: +12 dBu, +/-0.5 dBu

FlexMix Outputs
Type: 16 (12 XLRM, 4 1/4" TRS, balanced)
Maximum Output Level: +24 dBu, +/-0.5 dBu
Output Impedance: 100?

Subgroup Outputs
Type: (4) 1/4" TRS, balanced
Maximum Output Level: +24 dBu, 0.5 dBu
Output Impedance: 100?

Main Outputs
Type: 3 XLR Male, balanced (Stereo Left/Right, Main Mono/Center)
Maximum Output Level: +24 dBu, +/-0.5 dBu
Output Impedance: 100?

Monitor Outputs
Type: 1/4" TRS Female, balanced (stereo pair)
Maximum Output Level: +18 dBu, +/-0.5 dBu
Output Impedance: 100?

Tape Outputs
Type: RCA Female, unbalanced (stereo pair)
Maximum Output Level: +18 dBu, +/-0.5 dBu
Output Impedance: 100?

Headphone Output
Type: 1/4" TRS Female, active stereo
Maximum Output: 100 mW/ch. @ 60? load
Frequency Response: 20 Hz - 20 kHz (+/- 0.5 dB)
THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

System Crosstalk
Input to Output: -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
Adjacent Channels: -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
