Description

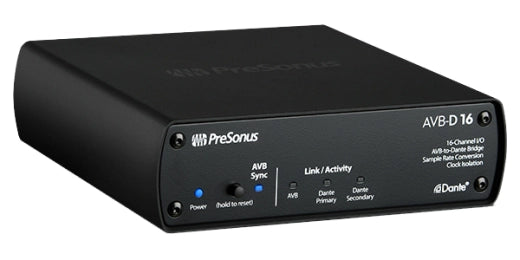

The PreSonus® AVB-D16 is the first plug-and-play endpoint that bridges AVB and Dante® networks. Now you can send and receive up to 16 audio channels between an AVB and Dante network with one simple device, making it the perfect solution to connect your StudioLive® Series III AVB ecosystem to your favourite Dante-equipped products, like the PreSonus CDL12 constant-directivity loudspeaker. Built-in asynchronous sample-rate conversion ensures that the AVB-D16 provides precision clock isolation between your AVB and Dante networks for pristine, clear audio with no dropouts or artifacts.
Onboard AVB networking and the AVB-D16 make it possible to add Dante functionality to your StudioLive Series III mixer without the unnecessary hassle of an internal option card. Simply connect one or more AVB-D16 AVB-to-Dante bridges to your existing StudioLive Series III AVB network to add 16 channels of Dante I/O with each bridge. AVB-D16 makes the vision of plug-and-play functionality between audio networks a reality!
Features
• 16 x 16 AVB
• 16 x 16 Dante®
• Asynchronous sample-rate conversion
• Precision clock isolation
• 1 AVB port on locking etherCON™
• 2 Dante ports on etherCON™
• Use multiple AVB-D16 AVB-to-Dante bridges to add more channels
• Network Link/Activity indicators
• Support for 44.1 kHz and 48 kHz (AVB and Dante)
• Support for 88.2 kHz and 96 kHz (Dante)
• Rugged metal chassis
Specifications
AVB Audio Network Port: etherCON™
AVB Audio Sample Rates: 44.1 kHz, 48 kHz
Dante® Audio Network Port: etherCON™
Dante Audio Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Input Voltage Range: 100-230 VAC (+10%)
Height: 1.68" (43 mm)
Depth: 5.9" (145 mm)
Width: 5.7" (145 mm)
Weight: 1.63 lbs. (0.74 kg)
