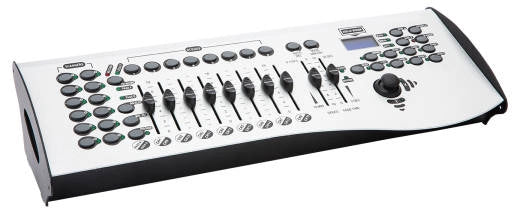

Orion - 16-Channel DMX Lighting Controller
Orion - 16-Channel DMX Lighting Controller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
Designed for simple setup and control of even the most complex lighting scenario, the ORCONTROL DMX512 lighting desk is capable of controlling 12 intelligent lights as well as smoke machines across 16 channels.
Thirty programmable banks with 8 scenes each (240 scenes) allow detailed preset design for even the most complex stage or club setup. Two assignable pan / tilt joysticks ensure the ORCONTROL is ready when you expand into moving head lights and effects. All channels and faders can be reassigned for detailed system control.
The ORCONTROL is able to run multiple chases simultaneously, and can tap sync, audio sync or auto run depending on application. Ideal for use with any and all Orion DMX ready lasers, LEDs and smoke machines.
Features
• Universal DMX512 Controller
• Controls 12 Intelligent Lights up to 16 Channels
• 30 Banks of 8 Scenes (240 Scenes Total)
• Set up to 6 Chases containing 240 Scenes
• Executes Multiple Chases Simultaneously
• Channels are Re-assignable
• Assignable 16-bit Pan / Tilt Joystick Controller
• Beat Activation, Tap Sync, Auto Run Mode
• Selectable DMX Output Polarity
Specifications
DMX Protocol: DMX-512 USITT
DMX Connections:DMX XLR 3-Pin Input & Output
Additional Connections: Audio Input (Sound Active Mode), 5-Pin DIN plug (Fog Machine Control), USB Lamp Socket / Power Port
Power Supply: DC 9-12v 500mA
(Use Supplied Power Supply Only)
Dimensions L xWxH (in):19 x 7.5 x 3.5
Dimensions L xWxH (mm): 482 x 190 x 90
Weight: 7.7 lbs / 3.5kg
