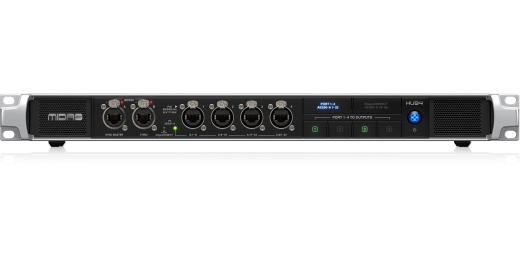

Midas - Monitor System Hub with 4 PoE Ports for Personal Mixers or Compatible Stage Boxes
Midas - Monitor System Hub with 4 PoE Ports for Personal Mixers or Compatible Stage Boxes is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
Midas HUB4 is the multi-tool in your stage rack providing analogue and digital outputs for various applications. HUB4 can supply up to four DP48 personal monitor mixers with PoE (Power over Ethernet) and 48 channels of 24-bit / 48 kHz audio. HUB4 also collects 48 channels of upstream audio and forwards this audio to the FOH console, either from stage boxes connected to the AES50-B (THRU) Port or 8 return channels from each of Ports 1-4.
To meet the challenges of large monitoring setups, HUB4 can easily be daisy-chained to make additional DP48 ports available, all the way up to symphonic orchestra applications.
On the other hand, HUB4 can also address situations where you want to connect additional I/O via the same AES50 link to the mixing console. To help build out this AES50 console link, digital stage boxes such as the Midas DL16 or DL32 can be connected to the HUB4s AES50-B (THRU) Port. The console can pass downstream signals to their respective stage outputs, while also receiving 48 channels upstream from the stage inputs via HUB4.
Specifications
Connections
AES50 sync master / thru: 2 x RJ45
AES50 remote outputs: 4 x RJ45
Remote power: PoE (IEEE802.3at)
USB: Type B
StageConnect: 1 x XLR, male
Analogue outputs: 4 x XLR, balanced 12 x 1/4" TRS, balanced
Controls / Indicators
Power: 1 x blue LED (button)
AES50-A: 1 x green LED 1 x button LED, green/white
StageConnect: 1 x green / white (button) 1 x green LED (port active)
Ports 1 - 4: 4 x button LED, green/white
TO AES50-A: 2 x green LED
AES50 - A / B: 2 x green LED (good connection) 2 x red LED (error)
AES50
Audio channels: 48
Sample rate: 44.1 / 48 kHz
Sample word length: 24 bit
Clock synchronization: AES50 Sync Master
Latency: min. 70 s per node (AES50)
Cable: shielded CAT 5e
Cable length: max. 100 m (330 ft)
StageConnect
Audio channels in / out: 16 / 16
Sample rate: 44.1 / 48 kHz
Sample word length: 24 bit
Phantom power: +12 V DC / 18 W
Latency: 0.1 ms
Cable: XLR balanced, mic or DMX cable
Cable length: max. 40 m (132 ft) with DMX typ. 20 m with microphone cable
Power Supply, Voltage, Current Consumption
Switch mode power supply: Autorange, 100-240 V~50/60 Hz
Power consumption: 180 W
Mains connection: Standard IEC receptacle
