Midas | SKU: DN4816-I

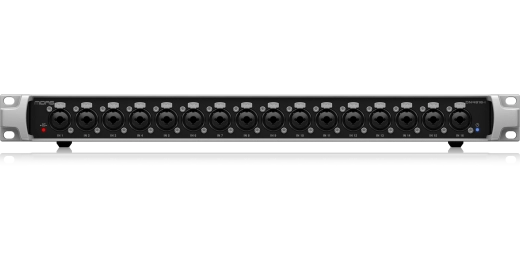

Midas - DN4816-I Bus-Powered StageConnect Interface

Name: Midas - DN4816-I Bus-Powered StageConnect Interface
Brand: Midas
SKU: DN4816-I
Price: 679.00 CAD
Availability: OutOfStock

$679.00

This product is not currently available online. Contact us to order this product or for more information.

50 years of expertise

Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.

Shipping

Shipping is free for all purchases of $249 or more.

Delivery policy

We offer free shipping on most products of $ 249.00 and over.

Free shipping is not valid for remote regions such as Nunavut, Yukon, Northwest Territories.

Due to size, weight or destination, some items will not qualify for free shipping.Métronomie ships all items uninsured. The risk of shipping loss or damage is the sole responsibility of the customer. The products are available within the limits of available stocks.

Métronomie provides dispatch or delivery, it will endeavor to ship or deliver any ordered product as soon as possible and within the time specified, if any. However, you understand that Métronomie will not be held responsible for delays in shipment or delivery.

Questions/Contact

Please call our toll-free web store customer support line at 1-418-724-8088, or email metronomie@gmail.com with any questions, suggestions or concerns.

BEST PRICE GUARANTEE!

If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.

Payment and security

Payment methods

Your payment information is handled securely. We do not store or have access to your credit card details.

Description

The DN4816-I is the perfect solution for connecting additional line inputs to your monitor or FOH console. It provides 16 analogue inputs to connect wireless receivers or other external audio players.

The StageConnect interface can be connected to other StageConnect devices using a single XLR cable for multi-channel audio transmission. There are various I/O options available providing easily scalable connectivity in your side rack. The devices of the DN48XX Series can be daisy-chained and will negotiate the channels for their respective connectivity automatically.

The Midas DN48XX Series is one of the first available I/O-Interfaces based on the StageConnect-Standard. This new standard comes with outstanding technical specs: 32 channels of uncompressed PCM audio in various I/O configurations, 24-bit at 48 kHz, below 0.05 ms of latency.

The DN48XX Series is the first generation of I/O Interfaces for the new StageConnect ecosystem. StageConnect was introduced with the Behringer WING mixing console. Even though the DN48XX Series was designed with the WING console in mind the devices can be used with all StageConnect devices like HUB4. The StageConnect ecosystem opens a wide field of audio devices. May it be several I/O devices spread over the stage or equipment in the siderack - the use cases for the DN48XX Series StageConnect Interfaces are virtually endless.

Specifications
Processing
A/D conversion: 24-Bit, 48/44.1 kHz, 114 dB
StageConnect bus capacity: 32 ch, 24-Bit PCM audio
I/O latency: 0.05 ms

Connectors
Analog Inputs: 16 x XLR female jacks, balanced
Impedance: 20 k? unbalanced / 40 k? balanced
Max. input level: +21 dBu
Ultranet: 2 x RJ45
Shielded CAT5e cable max. length: 75 m
StageConnect: 1 XLR male, 1 XLR female
Shielded bal. 110-Ohm DMX cable: max. 40 m
USB: Type B

System
Frequency response: 20 Hz - 20 kHz +/-0.2 dB
Dynamic range: 106 dB
Cross talk rejection @ 1 kHz, adjacent channel: 106 dB
Noise (20 Hz - 20 kHz bandwidth): -106 dBFS
Distortion: 0.004% / 1 kHz / 0 dBu in

Power
Power supply: 12 VDC / 2.5 A (30 W) adapter included, remote power input via SLAVE XLR (female), remote power output via MASTER XLR (male) 12 VDC / 1.5 A (18 W)
Power consumption: 8.5 W
