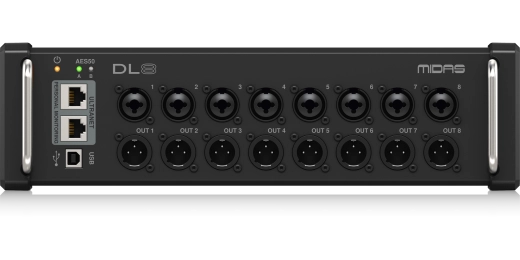

Midas - PoE-Powered 8 Input/Output Stage Box with Midas PRO Microphone Preamplifiers
Midas - PoE-Powered 8 Input/Output Stage Box with Midas PRO Microphone Preamplifiers is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The DL8 Stage Box provides 8 of MIdas' award-winning Midas PRO microphone preamplifiers with switchable +48 V phantom power; 8 electronically balanced low impedance line level; integrated ULTRANET distribution hub for connecting to Behringer P16-M personal monitor mixers or Turbosound speaker systems; plus dual AES50 SuperMAC ports for cascading additional StageBoxes.
Connecting over a single shielded (STP) CAT5 cable, up to three DL8s can be daisy-chained to deliver 48 channels in and 48 out to the stage. Klark Tekniks AES50 simultaneously provides high channel counts, extremely low and deterministic latencies, accurate phase-aligned networked clock distribution, error detection, network redundancy, with simple deployment and ease of use to meet the needs of the live performance industry. This unique combination also benefits both live and studio recording applications, as well as post-production, broadcasting and audio routing infrastructure.
Specifications
Processing
A/D-D/A conversion: 24-bit @ 44.1 / 48 kHz, 114 dB dynamic range (A-weighted)
Networked I/O latency (stagebox in - console processing - stagebox out): 1.1 ms
Connector
Programmable mic preamps, designed by Midas, balanced XLR/TRS combo: 8
Line outputs, balanced XLR: 8
ULTRANET outputs, RJ45 (power supplied for Behringer P16-M personal mixers): 2
AES50 port, SuperMAC networking, NEUTRIK etherCON: 2
USB port for system updates, type B: 1
Mic Input Characteristics (Midas PRO)
Mic input impedance XLR jack, unbal. / bal.: 5 k? / 10 k?
THD + noise, 20 dB gain, 0 dBu out: 0.006%, unweighted
Phantom power, switchable per input: +48 V
Equivalent input noise level, XLR (input shorted): -125 dBu, unweighted
CMRR, XLR, @ 20 dB gain (typical): 75 dB
Input/Output Characteristics
Frequency response @ 48 kHz sample rate: 10 Hz - 22 kHz, 0 dB to -1 dB
Dynamic range, analog mic in to analog out (typical): 106 dB, 22 Hz to 22 kHz, unweighted
A/D dynamic range, mic preamp to converter (typical): 109 dB, 22 Hz to 22 kHz, unweighted
D/A dynamic range, converter and output: 108 dB, 22 Hz to 22 kHz, unweighted
Crosstalk rejection @ 1 kHz, adjacent channels: 100 dB
Non clip maximuminput level, XLR: +23 dBu
Line input impedance TRS jack, unbal. / bal.: 5 k? / 10 k?
Non clip maximum input level, TRS: +23 dBu
Output Characteristics
Output impedance, XLR, unbal. / bal.: 50 ? / 100 ?
Output level, XLR, nom. / max.: +21 dBu
Residual noise level, XLR: -88 dBu, 22 Hz to 22 kHz, unweighted
Digital In/Out
AES50 SuperMAC networking @ 48 or 44.1 kHz, 24-bit PCM: 2 x 48 Channels, bidirectional
AES50 SuperMAC cable length, CAT5 shielded: 80 m recommended
ULTRANET networking @ 48 or 44.1 kHz, 22-bit PCM: 2
ULTRANET cable length, CAT5 shielded: 75 m
ULTRANET phantom power for P16-M personal mixers: 2 powered outputs
