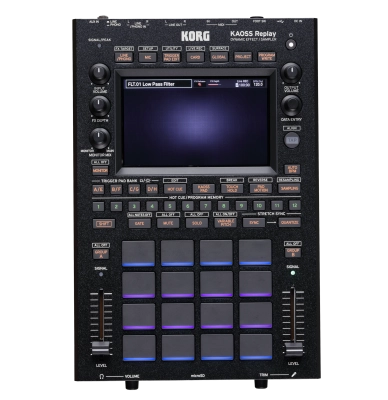

Korg - Kaoss Replay

The flagship KAOSS is here

With its groundbreaking XY pad and innovative and distinctive FX, the critically acclaimed KAOSS series has reshaped the music landscape, rewriting the rules of live performances and musical innovation across its various iterations.

KAOSS Replay is a self-contained performance tool that reshapes the KAOSS legacy, serving as an all-in-one solution for musicians, performers, and producers. It features unparalleled KAOSS Pad and Effects, expanded sample playback and sampling capabilities, and intuitive and precise DJ controls. In a portable stand-alone unit, KAOSS Replay facilitates electrifying KAOSS-infused performances on the fly, eliminating the need for additional equipment.

KAOSS Replay unlocks a new realm of musical creativity and boundless performance possibilities.

Features
• Stand-alone KAOSS - A dream come true for live musicians, KAOSS Replay allows you to immerse yourself in the creative essence of your performance without distractions.
• Unique KAOSS FX
• 16 high quality velocity-sensitive pads allows KAOSS Replay simplifies and streamlines the process of playing, sampling, or re-sampling.
• 5-inch full-color OLED touchscreen
• Ultra-portable and ready to go within seconds, it equips you with all the essential DJ tools, eliminating the need for external gear.
• a versatile tool that excels both inside and outside the studio. Its remarkably flexible MIDI Surface mode allows for complete customization, transforming it into a highly adaptable MIDI controller.

Specifications
Kaoss Pad Effect: 128 types
Effect exclusive for microphone: TONE, DELAY, REVERB
Max. number of projects: 100
Trigger pad: 16 (supports velocity) x eight banks
Hot cue: Max. 12 (per trigger pad)
Number of simultaneous plays: 16
Audio specifications: Linear PCM (48 kHz/16 bits)

Recording functions
Sampling, resampling
• Max. 30 min.
LIVE REC
• Max. 100 min.

Audio input
LINE/PHONO IN jack: RCA pin jack (Select LINE or PHONO.)
PHONO GAIN switch (LO/HI)
MIC IN jack: Standard phone jack (? 6.3 mm, monaural TS)
• Exclusive for Dynamic Microphone
AUX IN jack: Stereo mini jack (? 3.5 mm)
• Mix directly to LINE OUT.

Audio output
LINE OUT jack: RCA pin jack
HEADPHONES jack: Standard stereo phone jack (? 6.3 mm)

Controller input
FOOT SW jack: Standard phone jack (? 6.3 mm, TS)
• Connect the optional PS-1 or PS-3.

USB jack: microB (MIDI, Audio (IN x 2ch, OUT x 34ch (48 kHz/16 bits, You need to install the KORG KaossReplay Audio Driver in the Windows environment.)))

MIDI jack: IN/OUT (DIN 5pin) and the MIDI function are exclusive to the USB jack (IN x 1 port, OUT x 1 port).

External storage: microSD card, microSDHC card (32GB Max)
• Class10 or higher, UHS-I (U1) recommended (However, this does not guarantee operations with all cards.)
Product dimensions (L x W x H): 185 x 284 x 56mm
Product weight: 2.0 kg
• Excluding microSD card and AC adapter.
Power supply: DC 5V/3A

Accessories
Owner's manual (Quick Start Guide)
AC adapter
USB cable (Type A to microB, 1 m)
microSDHC Card
