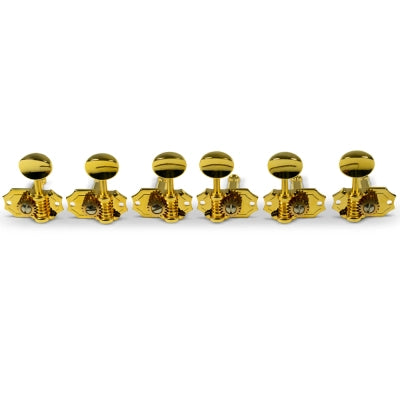

Kluson - 3 Per Side Prestige Series Vertical Mount Open Brass Gear Tuning Machines - Gold with Metal Oval Buttons
Kluson - 3 Per Side Prestige Series Vertical Mount Open Brass Gear Tuning Machines - Gold with Metal Oval Buttons is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at Rimouski
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more*
-
Processing: All orders are prepared and shipped within 24 hours (Monday to Friday).
-
Shipping Time: Delivery typically takes 3 to 7 business days. For faster delivery, please select Express Shipping at checkout.
- *Certain regions and products are excluded from free shipping due to size, weight, or destination.
Kluson - 3 Per Side Prestige Series Vertical Mount Open Brass Gear Tuning Machines - Gold with Metal Oval Buttons is backordered and will ship as soon as it is back in stock.
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
Classic pre-war elegance coupled with state of the art manufacturing and construction to create an exceptional tuning machine. These are designed to replace most contemporary open gear tuning machines such as Grover®, Schaller®, Wilkinson®, Waverly®, and others using a 26 mm center to center mounting hole pattern. They feature a precision diecast base, brass ring gear, steel worm gear with close tolerance bushings, and 18:1 gear ratio. For solid headstocks with vertical mount.
Specifications
Base Plate material: Zinc Diecast
Worm Gear material: Steel
Ring Gear material: Brass
Gear ratio: 18:1
String Post Orientation: Vertical for drilled Pegheads
String Post Overall length: 1 1/16 in. (27mm w/ domed top)
String Post Diameter: 1/4 in. (6.35mm)
String thru hole location: 13/16 in from baseplate
Mounting hole spacing: 26mm
Configuration: 3 + 3
Mounting hardware included: Screws and bushings
Bushing Dimensions: 6.5mm I.D. / 8.75mm O.D.
Bushing Type: Hex head push-in
