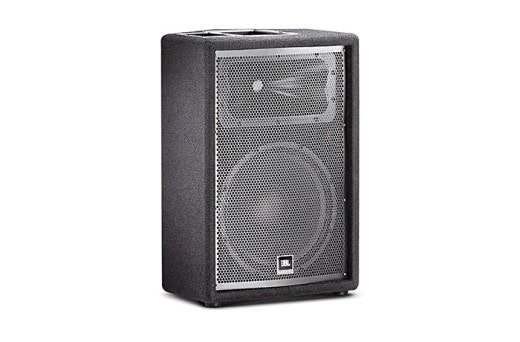

JBL - JRX212 12 2-Way Passive Stage Monitor
JBL - JRX212 12 2-Way Passive Stage Monitor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The JRX212 is a portable, twelve-inch, two-way speaker system designed specifically for live performance stage monitoring applications.
Features:
• JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
• JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
• The advanced network topology crossover design shapes frequency response and delivers "coherent summation" in the crossover region.
• High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
• Progressive Transition high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
• The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
• SonicGuard protects the high frequency driver from excess power without interrupting the performance.
• Non-resonant, all-steel handles
• Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
• Dual-angle pole-mount socket allows the speaker to tilt 10 degrees for more uniform audience coverage.
Specifications:
• Power Rating: 250 W / 1000 W
• Frequency Range (-10 dB): 60 Hz - 20 kHz
• Frequency Response (+/-3 dB): 80 Hz - 18 kHz
• Sensitivity (@1m): 98 dB SPL (1w/1m)
• Nominal Impedance: 8 ohms
• Recommended Amplifier Power: 250 W to 500 W into 8 ohms
• Maximum SPL: 128 dB
• Nominal Dispersion: 90 x 50 degrees
• Crossover Frequency: 2.1 kHz
• Low Frequency Driver: JBL M112-8
• High Frequency Driver: JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition Waveguide
• Input Connectors: Neutrik Speakon NL-4 (x1); .25 in
TS phone jack (x1); parallel
• Dimensions: 23 in x 15.7 in x 12.8 in
• Weight: 43 lbs
