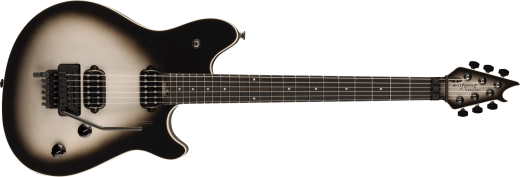

EVH - Wolfgang Special, Ebony Fingerboard - Silverburst

Road-tested in arenas around the world, the Wolfgang® Special is a purebred music-making machine, designed with stunning style, giant sound and high-speed playability.

The Wolfgang Special features a basswood body with an arched top and a robust graphite-reinforced bolt-on quartersawn maple neck. The neck is carved and rolled to Eddie Van Halen's exacting specifications and features a hand-rubbed satin urethane finish on the back. Primed for high performance, energetic riffing and blazing leads, the 12"-16" compound radius ebony fingerboard has 22 jumbo frets and pearloid dot inlays. Truss rod adjustments have also never been easier thanks to a spoke wheel conveniently located at the base of the neck.

A pair of flagship custom-designed EVH® Wolfgang Alnico 2 humbucking pickups are mounted directly to the body, providing dynamic yet articulate voicing, as well as endless sustain for powerful chords and melody lines. A sturdy and dependable EVH-branded Floyd Rose® locking trem and Floyd Rose locking nut work in tandem for precise tuning even with extreme changes in pitch, while the EVH D-Tuna® retunes to drop-D and back with strict accuracy at the flick of a finger. The volume knob with treble bleed circuit has a 500K EVH Bourns® low friction pot for smooth swells and a tone control knob with a 250K Bourns high friction tone pot that prevents accidental tone shifting.

Features
• 25.5" scale length
• Basswood body with arched top
• Graphite-reinforced bolt-on quartersawn maple neck
• Neck is carved and rolled to Eddie Van Halen's specifications with a hand-rubbed satin urethane finish on the back
• 12"-16" compound radius ebony fingerboard with 22 jumbo frets and pearloid dot inlays
• Convenient heel-mount truss rod adjustment spoke wheel
• Direct mount EVH® Wolfgang® Alnico 2 bridge and neck humbucking pickups
• EVH-branded Floyd Rose® locking trem and R2 locking nut
• EVH D-Tuna®
• Three-way toggle switch, EVH volume control (500K EVH Bourns® Low Friction Pot) with treble bleed circuit and tone control (250K • EVH Bourns® High Friction Pot)

Specifications
Neck
HEADSTOCK: EVH® Wolfgang®
NECK MATERIAL: Quartersawn Maple
NECK FINISH: Hand-Rubbed Satin Urethane
NECK SHAPE: Wolfgang® Backshape
NECK CONSTRUCTION: Bolt-On with Graphite Reinforcement
NECK THICKNESS: .805" at 3rd & .890" at 12th Fret
FINGERBOARD RADIUS: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
FINGERBOARD MATERIAL: Ebony
POSITION INLAYS: Pearloid Dot
SIDE DOTS: Pearloid
NUMBER OF FRETS: 22
TRUSS ROD: EVH®-Branded with Wheel
TRUSS ROD NUT: Heel-Mount Truss Rod Adjustment Wheel
STRING NUT: Floyd Rose® R2 Locking
NUT WIDTH: 1.625" (41.3 mm)
NUT MATERIAL: Floyd Rose® R2 Locking

Body
BODY: Basswood
BODY FINISH: Gloss Urethane
BODY SHAPE: Wolfgang®
BODY BINDING: 1-Ply Cream
BODY MATERIAL: Basswood

Hardware
BRIDGE: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
TREMOLO BLOCK: Brass
PICKUP COVERS: Black
CONTROL KNOBS: Black Knurled with White Indicator
SWITCH TIP: Black
HARDWARE FINISH: Black
TUNING MACHINES: EVH®-Branded Gotoh®
STRING TREES: Floyd Rose® Retainer Bar
STRINGS: EVH® Nickel Plated Steel (.009-.042 Gauges)
TREMOLO ARM: Floyd Rose® 1000 Series Locking
STRAP BUTTONS: Oversized

Electronics
BRIDGE PICKUP: Direct Mount EVH® Wolfgang® Humbucking
NECK PICKUP: Direct Mount EVH® Wolfgang® Humbucking
PICKUP CONFIGURATION: HH
CONTROLS: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
SWITCHING: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
