Chauvet DJ - Stage Designer 50 48-Channel DMX 3 & 5-Pin 12-Scene Dimming Console
Chauvet DJ - Stage Designer 50 48-Channel DMX 3 & 5-Pin 12-Scene Dimming Console is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at Rimouski
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more*
-
Processing: All orders are prepared and shipped within 24 hours (Monday to Friday).
-
Shipping Time: Delivery typically takes 3 to 7 business days. For faster delivery, please select Express Shipping at checkout.
- *Certain regions and products are excluded from free shipping due to size, weight, or destination.
Chauvet DJ - Stage Designer 50 48-Channel DMX 3 & 5-Pin 12-Scene Dimming Console is backordered and will ship as soon as it is back in stock.
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description

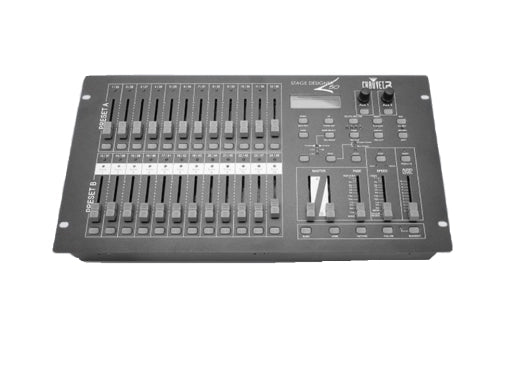

The Stage Designer 50 takes the size of a 24-channel dimming console and the functionality of a 48-channel console and combines the two into one powerful dimming unit. The Stage Designer 50 has up to 8 pages with 12 scenes each and 96,000 programmable steps. The console allows the user to re-assign channels as needed and allows for MIDI input.
Features
• Theater-style, DMX controller designed to control LED Par fixtures as well as relay and dimmer packs
• Saves desk space by squeezing 48 channels into a 24-channel console
• Achieve smooth transitioning between live stage looks with built-in, two-scene cross faders
• Increase programming and playback versatility with two programmable auxiliaries
• Simplify programming by using DMX channel patching to reassign channels
• Increase flexibility with built-in MIDI support for remote dimming and scene triggering
• Coordinate your light shows to music using the direct audio input connector or built-in microphone
• Ability to stack scenes for simultaneous or sequential playback
Specifications
DMX Channels: 48
DMC Connectors: 3- and 5-pin XLR
Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
Weight: 4.5kg
Size: 483 x 267 x 89mm
Rackmount: 6U
What's Included
• Power cord
• User manual
• External power supply
