Description

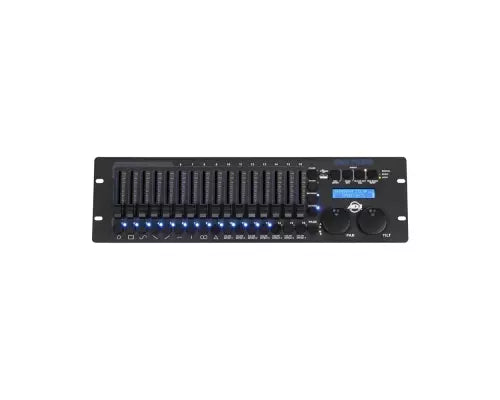

The ADJ Lighting DMX FX512 is a 3-space, 19-inch rack mount controller for both moving heads and LED pars with 16 effects generators and 512 channels. Its compatible with DMX and RDM protocols.
Features
• 19-inch rack-mount DMX Controller
• DMX 512 & RDM protocol.
• 512 DMX channels.
• Control up to 32 intelligent fixtures, up to 18 channels each
• 32 chases, each up to 100 steps, can run 5 chases simultaneously
• 32 programmable scenes
• Soft-patchable faders & control wheels
• 16 built-in effects generator. 9 for moving light and 7 for RGB LED fixtures
• USB for data backup and firmware update.
Specifications
DMX512 and RDM
RDM to set the DMX addresses and DMX channel mode of the fixtures from controller
16 channel control faders
Dedicated Pan/Tilt wheels (User Assignable)
16 Effects / Fixture select buttons
Sound sensitivity digitally adjustable (0%-100%), built-in Mic.
With Wired Digital Communication Network
5pin XLR DMX Output
Power Supply Input
USB A Port
Power Supply: DC9V 12V 300mA min. (DC9V 1A PSU Included)
Power Consumption: DC9V 165mA 1.5W, DC12V 16mA 2W
