Allen & Heath | SKU: W4 1602

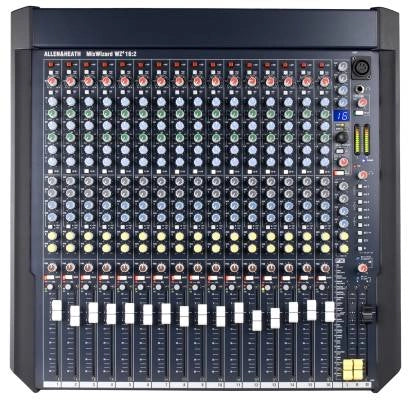

Allen & Heath - MixWizard WZ4 16:2 Mixer with Effects

Name: Allen & Heath - MixWizard WZ4 16:2 Mixer with Effects
Brand: Allen & Heath
SKU: W4 1602
Price: 1999.00 CAD
Availability: OutOfStock

$1,999.00

This product is not currently available online. Contact us to order this product or for more information.

50 years of expertise

Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.

Shipping

Shipping is free for all purchases of $249 or more.

Delivery policy

We offer free shipping on most products of $ 249.00 and over.

Free shipping is not valid for remote regions such as Nunavut, Yukon, Northwest Territories.

Due to size, weight or destination, some items will not qualify for free shipping.Métronomie ships all items uninsured. The risk of shipping loss or damage is the sole responsibility of the customer. The products are available within the limits of available stocks.

Métronomie provides dispatch or delivery, it will endeavor to ship or deliver any ordered product as soon as possible and within the time specified, if any. However, you understand that Métronomie will not be held responsible for delays in shipment or delivery.

Questions/Contact

Please call our toll-free web store customer support line at 1-418-724-8088, or email metronomie@gmail.com with any questions, suggestions or concerns.

BEST PRICE GUARANTEE!

If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.

Payment and security

Payment methods

Your payment information is handled securely. We do not store or have access to your credit card details.

Description

With its simplicity, quality and plentiful inputs, WZ4 16:2 will be loved by seasoned engineers and novice operators alike. This is a true all-purpose mixer, providing a full 16 high specification mic/line inputs in a compact, straightforward format.

WZ4 16:2 features Allen & Heath's acclaimed 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering and their QCC connector system for easy desktop, rack or flightcase mounting.

New features for this 4th generation MixWizard console include two newly designed digital FX engines with 20 studio quality FX presets and EQ in/out switching.

If you're looking for professional grade, all-purpose analogue mixers in a compact, rack mountable frame, the MixWizards continue to set the bar.

Feature Summary

• 19" Rack mountable
• 16 mic/line inputs with balanced XLR/TRS jack, insert and direct output
• 100mm faders
• 4 band EQ with 2 swept mids
• 6 Aux sends 2x pre fade / 2x switched / 2x post fade*
• 2 Stereo returns
• Dedicated mono output fader can be switched to provide an L+R mono feed for a centre or fill speaker, or sub bass feed
• Independent A-B output for 2-track recording, monitor foldback, speaker fills etc
• Tri-colour, 12 segment bargraph metering
• Twin FX engines with 20 studio quality FX presets
• +48V Phantom Power
• Signal and Peak LEDs
• Lamp socket
• Footswitch connector (mutes/unmutes the ST1 FX Return)
*Can be reconfigured with internal jumpers

Specs:

Maximum output level
XLR: +26dBu into 600 ohms max load
Jack: +21dBu into 2k ohm max load

Internal headroom
Channels: +21dB
Mix: +23dB

Meters: 3 colour LED, quasi peak response
Sensitivity: 0VU = +4dBu at XLR output
Master meters: 12 segment -30 to +16dB
Channel meters: 2 segment -12, +16dB (5dB before clip)

Frequency response: 10Hz to 30kHz +/-0.5dB

THD+n at +10dBu: 1kHz Channel to mix out < 0.004%

Power supply: 100-240V, 50/60Hz auto sensing, IEC input
Power consumption: 45W max
Mains fuse: T630mA L 20mm

Free standing dimensions: W 507mm (20") x D 530mm (20.9") x H 194mm (7.7")
Rack mounted (Underside connectors): W 483mm (19") x D 122mm (4.8") x H 444mm (17.5") 10U
Rack mounted (Rear connectors): W 483 (19") x D 193 (7.6") x H 497 (19.6") 11.2U

Weight: 13kg (28lbs)
