Allen & Heath  |  SKU: SQ-MADI

Allen & Heath - SQ MADI Digital Audio Networking Component

Regular price $1,099.00


This product is not currently available online. Contact us to order this product or for more information.

50 years of expertise

Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.

Shipping

Shipping is free for all purchases of $249 or more.

Delivery policy

We offer free shipping on most products of $ 249.00 and over.
Free shipping is not valid for remote regions such as Nunavut, Yukon, Northwest Territories.
Due to size, weight or destination, some items will not qualify for free shipping.Métronomie ships all items uninsured. The risk of shipping loss or damage is the sole responsibility of the customer. The products are available within the limits of available stocks.
Métronomie provides dispatch or delivery, it will endeavor to ship or deliver any ordered product as soon as possible and within the time specified, if any. However, you understand that Métronomie  will not be held responsible for delays in shipment or delivery.
Questions/Contact
Please call our toll-free web store customer support line at 1-418-724-8088, or email metronomie@gmail.com with any questions, suggestions or concerns.



BEST PRICE GUARANTEE!

If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.

Payment and security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Your payment information is handled securely. We do not store or have access to your credit card details.

Description

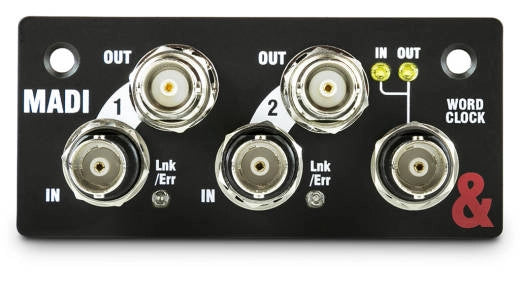

SQ MADI provides any SQ mixer with a 64x64 MADI interface running at either 48kHz or 96kHz. Two BNC inputs pair with two BNC outputs to allow for split or redundant setups while a dual function (in/out) BNC Wordclock connection enables the console to sync with other equipment.

SQ MADI enables connection and synchronisation with broadcast or recording systems, OB vans, and third-party consoles for high-channel count feeds over coaxial cables.

• 64x64 channel digital audio
• 96kHz or 48kHz operation
• Smux or HighSpeed 96kHz modes
• Sync from inputs or separate wordclock
• Console controlled error handling
• 4x BNC connectors (2 links)
• 1x BNC Wordclock I/O

Specs
Connectors: 4 x BNC (2 Links)
Sample Rate: 48 or 96 kHz
Modes: Smux or high speed 96 kHz
Sync: From inputs or separate wordclock
