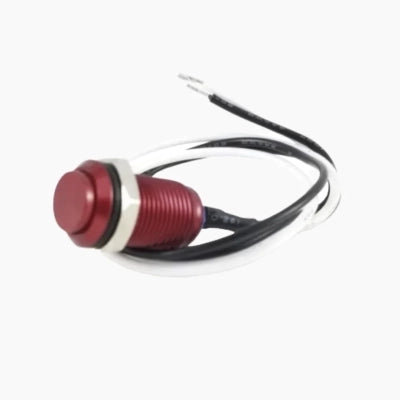

All Parts - 10mm Momentary Kill Switch - Red

Name: All Parts - 10mm Momentary Kill Switch - Red
Brand: All Parts
SKU: EP-4928-026
Price: 24.99 CAD
Availability: OutOfStock

$24.99

This product is not currently available online. Contact us to order this product or for more information.

50 years of expertise

Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.

Shipping

Shipping is free for all purchases of $249 or more.

Delivery policy

We offer free shipping on most products of $ 249.00 and over.

Free shipping is not valid for remote regions such as Nunavut, Yukon, Northwest Territories.

Due to size, weight or destination, some items will not qualify for free shipping.Métronomie ships all items uninsured. The risk of shipping loss or damage is the sole responsibility of the customer. The products are available within the limits of available stocks.

Métronomie provides dispatch or delivery, it will endeavor to ship or deliver any ordered product as soon as possible and within the time specified, if any. However, you understand that Métronomie will not be held responsible for delays in shipment or delivery.

Questions/Contact

Please call our toll-free web store customer support line at 1-418-724-8088, or email metronomie@gmail.com with any questions, suggestions or concerns.

BEST PRICE GUARANTEE!

If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.

Payment and security

Payment methods

Your payment information is handled securely. We do not store or have access to your credit card details.

Description

The IDO Super M 10mm kill switch is perfect for the player who doesn't want to make a major modification to their guitar. This switch is the perfect size to replace a standard 3/8" potentiometer with NO DRILLING. If you have a smaller potentiometer on an Asian import guitar, only minimal modification to the hole is required as Asian potentiometers are typically 9mm.

Simple wiring
The red wire goes to the output jack's hot terminal, and the black wire goes to ground, and you're done!

Specifications
- Type: Momentary Push Button Switch
- Operation Type: Normally Open
- Housing Material: Plated Brass
- Mounting hole Size: 10mm
- Mounting Panel Thickness: 1mm-6mm
- Operation Pressure: about 5n
- Operation Stroke: 2.0 mm
- Contact Resistance: 50 mOhm
- Mechanical Life: 500,000 cycles
- Switch Rating: 2A/36VDC
