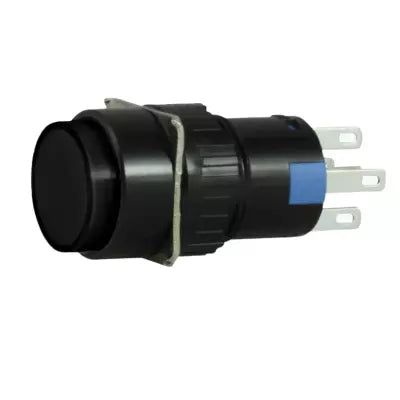

All Parts - TESI SWITCH EVH Style Momentary Kill Switch - Black

Name: All Parts - TESI SWITCH EVH Style Momentary Kill Switch - Black
Brand: All Parts
SKU: EP-4927-023
Price: 34.50 CAD
Availability: OutOfStock

$34.50

This product is not currently available online. Contact us to order this product or for more information.

50 years of expertise

Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.

Shipping

Shipping is free for all purchases of $249 or more.

Delivery policy

We offer free shipping on most products of $ 249.00 and over.

Free shipping is not valid for remote regions such as Nunavut, Yukon, Northwest Territories.

Due to size, weight or destination, some items will not qualify for free shipping.Métronomie ships all items uninsured. The risk of shipping loss or damage is the sole responsibility of the customer. The products are available within the limits of available stocks.

Métronomie provides dispatch or delivery, it will endeavor to ship or deliver any ordered product as soon as possible and within the time specified, if any. However, you understand that Métronomie will not be held responsible for delays in shipment or delivery.

Questions/Contact

Please call our toll-free web store customer support line at 1-418-724-8088, or email metronomie@gmail.com with any questions, suggestions or concerns.

BEST PRICE GUARANTEE!

If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.

Payment and security

Payment methods

Your payment information is handled securely. We do not store or have access to your credit card details.

Description

Introducing the EVH Style Momentary Kill Switch. You're getting a tough switch that will last a long time in your instrument and will look good doing it!

Specifications
- Type: Momentary Push Button Switch
- Operation Type: Normally Open
- Housing Material: Plastic
- Mounting hole Size: 16mm
- Mounting Panel Thickness: 1mm-6mm
- Operation Pressure: About 5n
- Operation Stroke: About 3mm
- LED Rated Voltage: 6V (includes wires to use with 9V battery and additional resistors in case you want to get creative with the wiring)
- LED Life: About 40,000 hours
- LED Power Draw: 15mA
- Contact Resistance: 50 mOhm
- Mechanical Life: 1,000,000 cycles
- Switch Rating: 3A/36VDC

Includes
- (1) Tesi NELLI 16mm Momentary Guitar Kill Switch - This is the size used on the Wolfgang Tour Guitar
- (1) Black/Black ground wire
- (1) Black/White hot wire
- (1) 9V Battery Harness with 330 Ohm resistor
- (1) On/Off Rocker Switch
