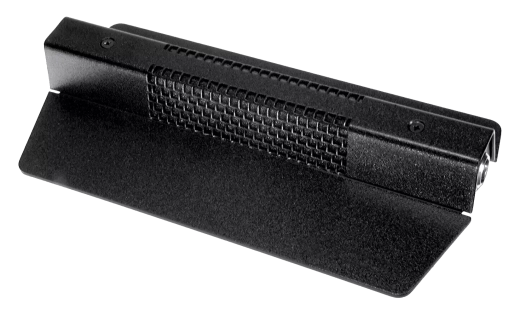

AKG - Supercardioid Boundary Microphone

The PCC160 is a professional boundary layer microphone and an industry standard stage floor microphone. It's capable of withstanding up to 120dB SPL without distortion. A bass-tilt switch allows the user to tailor the low-end response for particular applications.

PCC (Phase Coherent Cardioid) technology uses diaphragms so small that any phase cancellations are above the audible range. This results in a wide, smooth frequency response free of phase interference. The PCC160 uses a supercardioid polar pattern that improves gain before feedback and reduces unwanted room noise from the rear.

Features
• Supercardioid polar pattern rejects the pit orchestra and offers an impressive gain before feedback
• Phase coherent cardioid design prevents coloration from surface sound reflections
• Finely crafted, rugged housing withstand the rigors of the stage
• Low profile to be inconspicuously placed on the stage-floor
• Industry standard stage-floor microphone

Specifications
Audio frequency bandwidth: 50 - 18000 Hz
Equivalent noise level: 22 dB-A
Sensitivity: 22 mV/Pa
Signal to Noise: 72 dB-A
Recommended load impedance: 2000 Ohms
Dimensions: 170 mm x 80 mm
Height: 20 mm
Design
Finish: black
Audio Output
Type: Switchcraft TA3F
Contacts: 3-pin
Powering Interface
Voltage: 12 to 48 V
