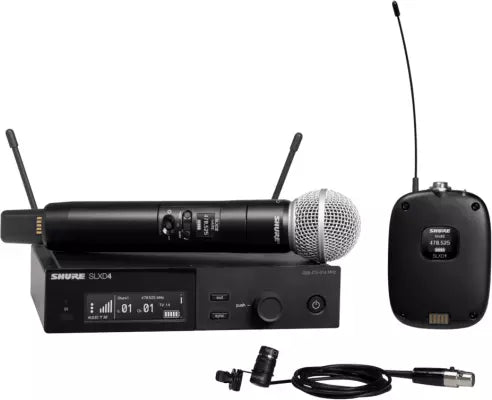

Shure - SLXD124/85 Digital Wireless Microphone System, Frequency - H55

From lecture halls to houses of worship to performance venues, SLX-D® delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring single half-rack and dual full-rack receiver options, handheld and bodypack transmitters and a wide selection of vocal, lavalier, headset and instrument microphone system configurations. Compatible with Shure UHF wireless antenna distribution and remote antenna accessories.

The SLXD124/85 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver, SLXD2/58 handheld transmitter, SLXD1 bodypack transmitter and WL185 cardioid lavalier microphone with antenna and rackmount accessories and 4 AA batteries.

SLXD2/58 Handheld
The industry-leading digital wireless technology and design of the SLXD2 easily syncs with a wireless receiver. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances. The Shure SM58® cardioid dynamic microphone capsule is an industry standard tailored to deliver warm, clear vocal reproduction.

SLXD1 Bodypack/WL185 Lavalier
The SLXD1 bodypack easily syncs with an SLX-D wireless receiver. The WL185 is a cardioid condenser lavalier microphone with a 130 degree pickup angle. The included tie clip can be rotated in 90 degree intervals for placement flexibility. Windscreens included and highly recommended in use. Also features CommShield® Technology, which guards against interference from cellular RF devices and digital bodypack transmitter.

SLXD4 Single Channel Receiver
The SLXD4 receiver is a single-channel receiver. Featuring industry-leading digital wireless technology and design, the SLXD4 easily syncs wireless transmitters.

Works with Wireless Workbench 7 a FREE download from Shure. See the video for more details.
Wireless Workbench is Shures free software for audio professionals that puts a full suite of RF spectrum management tools in one place to give you full command of your compatible wireless devices. Guarantee that you are prepared to succeed in any RF environment no matter the location.

Works with Wireless Workbench 7 - a FREE download from Shure.
Wireless Workbench is Shure's free software for audio professionals that puts a full suite of RF spectrum management tools in one place to give you full command of your compatible wireless devices. Guarantee that you are prepared to succeed in any RF environment - no matter the location. See the video for more details.

Features
*Transparent 24-bit audio
*Extended 20 Hz to 20 kHz frequency range
• 118 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth
• 32 available channels per frequency band
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over IR scan and sync
• Automatic Channel Scan
• Compatible with Shure Wireless Workbench® control
• Remote control via ShurePlus™ Channels mobile app
• Link multiple receivers for group scan and firmware updates via Ethernet port
• Third-party setup and control via Ethernet
• Elegant and easy-to-use interface with high-contrast LCD menu
• Guided setup mode installed in each SLX-D® receiver
• Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
• Rugged metal construction
• System configurations include handheld transmitters with interchangeable microphone capsules, bodypacks with a range of lavalier, headset, earset and instrument micophones and single and dual rack-mountable receivers.

What's Included
1 - SLXD4 Single channel receiver
1 - SLXD2/58 Handheld transmitter
1 - SLXD1/WL185 Bodypack/Cardioid Lavalier
2 - 1/4 wave antennas
2 - bulkhead adapters
2 - 22" BNC cables
1 - power supply
2 - rack mount bracket (short)
1 - hardware kit
4 - AA Batteries

SLXD1 Bodypack Specifications

Dimensions: 98 x 68 x 25.5 mm (3.86" x 2.68" x 1.0")
Weight: 89 g (3.1 oz)
Housing: PC/ABS
Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries

AUDIO INPUT
Connector: 4-Pin male mini connector (TA4)
Configuration: Unbalanced
Impedance: 1 M©
Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
Preamplifier Equivalent Input Noise (EIN): -118 dBV

RF OUTPUT
Antenna Type: 1/4 Wave
Occupied Bandwidth: < 200 kHz
Modulation Type: Shure Propietary Digital
Power: 1 mW/10 mW

SLXD2 Handheld Transmitter Specifications
Dimensions: 37.1 x 176 mm (1.46" x 6.938")
Weight: 147 g (5.2 oz)
Housing: Aluminum
Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries

AUDIO INPUT
Interchangeable microphone capsules
Configuration: Unbalanced
Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)

RF OUTPUT
Antenna Type: Integrated Single-Band Helical
Occupied Bandwidth: < 200 kHz
Modulation Type: Shure Propietary Digital
Power: 1 mW/10 mW

SLXD4 Receiver Specifications
Dimensions (H x W x D): 42 x 197 x 152 mm (1.65 x 7.76 x 5.98 in)
Weight: 816 g (1.8 lb) without antennas
Housing: Galvanized Steel
Power Requirements: 15 VDC @ 600 mA Supplied by external power supply (tip positive)

RF INPUT
Spurious Rejection: >75dB typical
Connector Type: BNC
Impedance: 50 ©

AUDIO OUTPUT
Gain Adjustment Range: 18 to +42 dB in 1 dB steps
Configuration: 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio , Sleeve = ground)
XLR: Balanced (1=ground, 2=audio +, 3=audio )
Impedance: 1/4" (6.35 mm): 1.3 k© (670 © Unbalanced)
XLR (line): 400 © (200 © Unbalanced) XLR (mic): 150 ©
Full Scale Output: 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single)
XLR (LINE setting): +15 dBV XLR (MIC setting): 15 dBV
Mic/Line Switch: 30 dB pad
Phantom Power Protection: 1/4" (6.35 mm): Yes XLR: Yes

NETWORKING
Network Interface: Single Port Ethernet 10/100 Mbps
Network Addressing Capability: DHCP or Manual IP address
Maximum Cable Length: 100 m (328 ft)

SLX-D Available Frequency Bands:
SLX-D G58 (470 to 514 MHz)
SLX-D H55 (514 to 558 MHz)
SLX-D J52 (558 to 602 MHz + 614-616 MHz MHz)
