Shure - GLXD14 Digital Wireless Instrument System with Bodypack and Cable

Revolutionary Shure GLX-D® Digital Wireless Systems combine leading-edge LINKFREQ Automatic Frequency Management technology with best-in-class intelligent lithium-ion battery rechargeability to define the new standard for seamless operation and digital audio clarity.

Includes GLXD1 bodypack transmitter, GLXD4 receiver, WA302 instrument cable, rechargeable battery, power supply, USB cable, carrying case, and user guide.

System Features
• Allows operation of up to 4 compatible systems in a typical setting, and up to 8 maximum under ideal conditions
• Operating range:
- Indoors: Up to 100 feet (30 m) typical, with a maximum of 200 feet (60 m) under ideal conditions
- Outdoors: Up to 65 feet (20 m) typical, with a maximum of 165 feet (50 m) under ideal conditions
• Rugged and reliable Shure construction

LINKFREQ Automatic Frequency Management (2.4 GHz frequency band)
• Revolutionary intelligent frequency management quickly identifies the best open group and channel frequencies
• Bi-directional communication link automatically enables the transmitter to follow any frequency change on the receiver
• Continuous interference monitoring automatically and seamlessly switches to backup frequencies if needed, without performance interruption

GLXD1 Bodypack Transmitter
GLXD1 features an ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. Provides up to 16 hours of continuous use with Shure lithium-ion rechargeable batteries.

Features
• Automatically links with GLXD4 and GLXD4R wireless receivers for seamless frequency changing
• Sophisticated design with rugged metal construction
• Easily accessible on / off switch
• Locking TQG connection for use with Shure lavalier, headset, earset, and instrument microphones and guitar cables

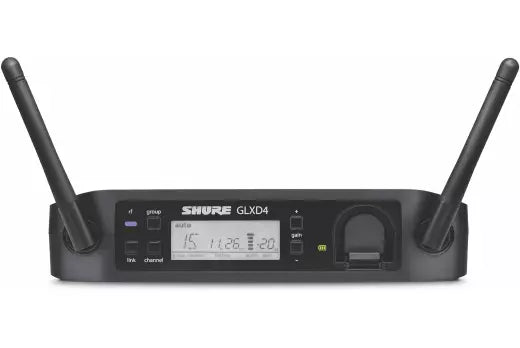

GLXD4 Receiver
The GLXD4 single-channel wireless receiver features revolutionary LINKFREQ Automatic Frequency Management (2.4 GHz frequency band) and battery rechargeability. An integrated battery charge port can charge a spare Shure lithium-ion battery while the system is in use. Allows operation of up to 4 compatible systems in a typical setting, and up to 8 maximum under ideal conditions. For use with GLX-D Digital Wireless Systems. Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features
• High-resolution LCD screen status display
• Real-time transmitter battery status displayed in hours and minutes (accurate within + / - 15 minutes)
• Remote adjustable transmitter gain control
• Two-colour charge indicator LED (Green: Charged, Flashing Green: 90% charged, Red: Charging)
• XLR and 1/4" output connectors
• Lightweight, durable construction

Specifications

GLXD1
Dimensions: 90 x 65 x 23 mm (3.56 x 2.54 x 0.90 in.), H x W x D (without antenna)
Weight: 132 g (4.7 oz.) without batteries
Power Requirements: 3.7 V Rechargeable Li-Ion
Housing: Cast Metal, Black Powdercoat
Input Impedance: 900 k
RF Output Power: 10 mW E.I.R.P. max
Transmitter Input
Connector: 4-Pin male mini connector (TA4M)
Configuration: Unbalanced
Maximum Input Level: 1 kHz at 1% THD +8.4 dBV (7.5 Vp-p)
Antenna Type: Internal Monopole

GLXD4
Tuning Bandwidth: 2400-2483.5 MHz
Working Range:
• Indoor
- Up to 30 m ( 100 ft) typical, Up to 60 m ( 200 ft) maximum
• Outdoor
- Up to 20 m ( 65 ft) typical, Up to 50 m ( 165 ft) maximum
Transmit Mode: Shure proprietary digital
Audio Frequency Response: 20 Hz 20 kHz
Dynamic Range: 120 dB, Aweighted
RF Sensitivity: 88 dBm, typical
Total Harmonic Distortion: 0.2%, typical
RF Output Power: 10 mW E.I.R.P. max
Operating Temperature Range: -18°C (0°F) to 57°C (135°F)
Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
Battery Life: Up to 11.5 hours
