Shure - BLX188/CVL Dual Diversity System w/ 2x CVL Lav Microphones (J11: 596-616 MHz)

Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, its the most accessible way to own the stage.

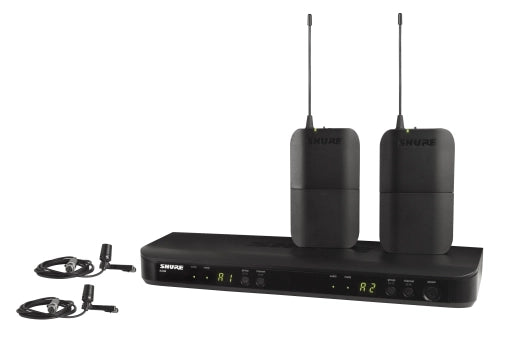

This 2-channel system includes the BLX88 dual-channel receiver, 2x BLX1 bodypack transmitters, 2x CVL lavalier microphone, power supply, lavalier clips, lavalier windscreens, and user guide.

CVL/BLX1 Bodypack Transmitter
The durable BLX1 features a lightweight, ergonomic design and adjustable gain control.
Easy to use, with quick receiver frequency matching and easily accessible On / Off switch. The BLX1 transmitter offers up to 14 hours of continuous use with 2 AA batteries and a 300ft (100 m) operating range (with line of sight). The CVL Cardioid Condenser lavalier is a reliable wearable microphone for spoken word applications

BLX88 Dual Wireless Receiver
The durable BLX88 offers simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. For use with BLX Wireless Systems. Its front-panel dual-color LED status indicator displays green for normal levels and red when clipping for fast metering. It has two XLR outputs in additional to two instrument-level 1/4" outputs.

Features
• Up to 12 compatible systems per frequency band
• One-touch QuickScan frequency selection quickly locates the best frequency
• 1/4" and XLR audio outputs
• Up to 300 ft (91 m) operating range for total wireless freedom

Specifications

BLX1 Bodypack Transmitter
Audio Input Level (gain): max: -16 dBV maximum / min (0 dB): +10 dBV maximum
Gain Adjustment Range: 26 dB
Input Impedance1 Ohm
RF Transmitter Output: 10 mW, typical - varies by region
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: Up to 14 hours (alkaline)
Dimensions (H x W x D): 110 mm x 64 mm x 21 mm
Weight: 75 g (2.6 oz.), without batteries

BLX88 Dual Channel Wireless Receiver
Output Impedance: XLR connector: 200 ohm, 6.35 mm (1/4") connector: 50 ohm
Audio Output Level (Ref. 33 kHz deviation with 1 kHz tone): XLR connector: -27 dBV (into 100k ohm load), 6.35 mm (1/4") connector: -13 dBV (into 100k ohm load)
RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: > 50 dB, typical
Dimensions: 388mm x 116mm x 40mm / 15.3" x 4.6" x 1.6"
Weight: 429g (15.1 oz.)
Power Requirements: 12 to 15 V DC @ 320 mA, supplied by external power supply (tip positive)

Available Frequency Bands:
BLX - H9 (512-542 MHz)
BLX - H10 (542-572 MHz)
BLX - H11 (572-596 MHz)
BLX - J11 (596-616 MHz)
