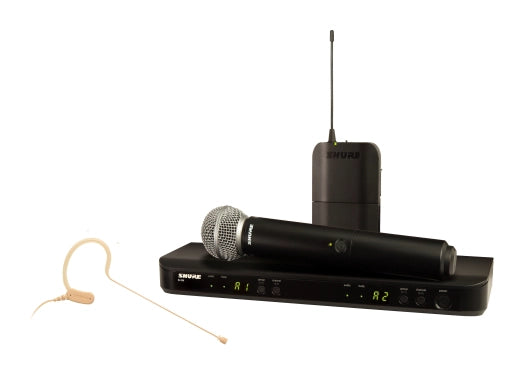

Shure - BLX1288/MX153-H11 Wireless System with SM58 Handheld and MX153 Earset Microphone

Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.

This 2-channel system includes the BLX88 dual-channel receiver, BLX1 bodypack transmitter, BLX2/SM58 handheld transmitter, MX153T Earset Microphone, power supply, WA371 handheld microphone clip, MX153 protective pouch and windscreens as well as a user guide.

A perfect use for this system is a presenter wearing the earset and the wireless handheld being used for audience questions!

SM58/BLX2 Handheld Transmitter
Compatible with Shure microphones trusted by musicians for decades, the BLX2 transmits wireless audio with professional clarity and reliability. Provides up to 14 hours of battery life and operates up with 300 feet (100 m) with line-of-sight. The SM58 is an industry standard that is made to handle voice with clarity and care.

MX153/BLX1 Bodypack Transmitter
The durable BLX1 features a lightweight, ergonomic design and adjustable gain control.
Easy to use, with quick receiver frequency matching and easily accessible On / Off switch. The BLX1 transmitter offers up to 14 hours of continuous use with 2 AA batteries and a 300ft (100 m) operating range (line of sight). The MX153T Earset is a headworn omnidirectional microphone that delivers exceptional speech clarity and enhanced plosive protection with no proximity effect.

BLX88 Dual Wireless Receiver
The durable BLX88 offers simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. For use with BLX Wireless Systems. Its front-panel dual-color LED status indicator displays green for normal levels and red when clipping for fast metering. It has two XLR outputs in additional to two instrument-level 1/4" outputs.

Features
• Up to 12 compatible systems per frequency band
• One-touch QuickScan frequency selection quickly locates the best frequency
• 1/4" and XLR audio outputs
• Up to 300 ft (91 m) operating range for total wireless freedom

Specifications

BLX2 Handheld Transmitter
Audio Input Level gain:
• 0dB: -20 dBV maximum
• -10dB: -10 dBV maximum
Gain Adjustment Range: 10 dB
RF Transmitter Output: 10 mW, typical varies by region
Dimensions: 224 mm X 53 mm dia. (8 7/8 X 2 1/8 in.)
Weight: 218 g (7.7 oz.) (without batteries)
Power Requirement: 2x AA batteries, 1.5v, alkaline
Battery Life: up to 14 hours (alkaline)

BLX1 Bodypack Transmitter
Audio Input Level (gain): max: -16 dBV maximum / min (0 dB): +10 dBV maximum
Gain Adjustment Range: 26 dB
Input Impedance:1 MOhm
RF Transmitter Output: 10 mW, typical - varies by region
Power Requirements: 2x AA batteries, 1.5v, alkaline
Battery Life: Up to 14 hours (alkaline)
Dimensions (H x W x D): 110 mm x 64 mm x 21 mm
Weight: 75 g (2.6 oz.), without batteries

BLX88 Dual Channel Wireless Receiver
Output Impedance: XLR connector: 200 ohm, 6.35 mm (1/4") connector: 50 ohm
Audio Output Level (Ref. 33 kHz deviation with 1 kHz tone): XLR connector: -27 dBV (into 100k ohm load), 6.35 mm (1/4") connector: -13 dBV (into 100k ohm load)
RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: > 50 dB, typical
Dimensions: 388mm x 116mm x 40mm / 15.3" x 4.6" x 1.6"
Weight: 429g (15.1 oz.)
Power Requirements: 12 to 15 V DC @ 320 mA, supplied by external power supply (tip positive)

Available Frequency Bands:
BLX - H9 (512-542 MHz)
BLX - H10 (542-572 MHz)
BLX - H11 (572-596 MHz)
BLX - J11 (596-616 MHz)
