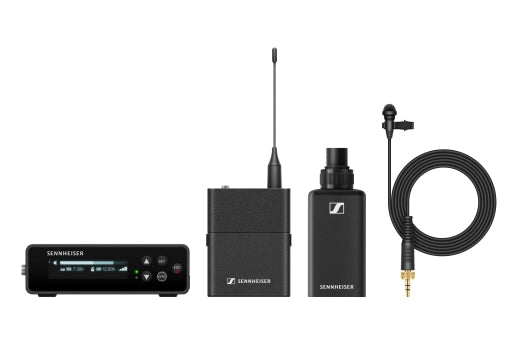

Sennheiser - EW-DP ENG Portable Wireless Lavalier System with Plug-on Transmitter (R4-9: 552 - 607.8 MHz)

Rounding out the award-winning Evolution Wireless Digital series, this fully digital UHF wireless microphone system features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters.

At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for those new to wireless and seasoned professionals alike. Convenient features like remote Bluetooth synchronization and system control via the Smart Assist app help you save time and energy on set. A front facing OLED display allows for easy menu navigation and at-a-glance system status at any angle in any light. Smart Notifications help to troubleshoot your system and suggest solutions for various challenges you may encounter. Versatile, magnetically stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location.

The EW-DP ENG Set includes both the SK bodypack transmitter with an ME 2 omnidirectional lavalier as well as the SKP plug-on transmitter for the most flexibility of any EW-DP system. The SKP transmitter turns any wired microphone into a wireless option. Features include an XLR input with +48V phantom power, a 3.5 mm locking input, and a micro-SD card slot for 24-bit, 48 kHz on-board recording. From boom mics to handhelds and even lavaliers, this versatile tool acts as a problem solver when you need it most.

Capture your full creative vision with EW-DP. Setup simplicity and digital clarity put time on your side so you can focus on what matters most. After all, production has enough challenges; sound doesnt need to be one of them.

Feature Overview

• Fully digital UHF system designed for filmmaking & video applications
• Industry leading 134 dB dynamic range for distortion free transmission
• Integrated Bluetooth for synchronization and control
• Intelligent battery management provides operating time (hours:minutes)
• Extended battery life: up to 12h on transmitter, 7h on receiver
• Magnetic, stackable, and versatile mounting options
• Up to 56 MHz bandwidth for flexibility in any RF environment
• Exceptionally low latency (1.9 ms)
• Plug-on transmitter: XLR & 3.5 mm inputs, +48V & recording via microSD
• External charging and powering via USB-C (receiver only)
• Smart Assist app for monitor & control

In the Box:
- EW-DP EK digital portable single channel receiver
- EW-D SK digital bodypack transmitter
- ME 2 omnidirectional lavalier microphone
- EW-DP SKP digital plug-on transmitter
- Mounting kit (cheeseplate, cold shoe, belt clip & screws)
- BA 70 li-ion battery & (2) AA battery
- Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
- Locking 3.5 mm TRS plug to XLR plug cable
- USB-C charging cable

Specifications

System
Availabe Frequency ranges:
Q1-6 (470.2 - 526 MHz)
R1-6 (520 - 576 MHz)
R4-9 (552 - 607.8 MHz)
Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD: < = -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range: 134 dB
System latency: 1.9 ms
Operating temperature: -10°C - +55°C (14°F - 131°F)
Relative humidity: 5 - 95% (non-condensing)

EW-DP EK
Input voltage: ~ 1.8 - 4.35 V
Input current: Typ. < 250 mA / Max. < 400 mA (BA 70)
Transmit power (radiated): BLE: max. 10 mW EIRP
Audio output power: < 2 dBV max. (high level) / < 4dBU max. (high level)
Headphone Output: < 50 mW into 16 Ohms
Dimensions: 86 x 67 x 28 mm (3.39" x 2.64" x 1.1")
Weight (without antennas and power supply): approx. 140g

ME 2 (Lavalier Microphone)
Transducer principle: pre-polarized condensor microphone
Pick-up pattern: omni-directional
Sensitivity (free field, no load) (1 kHz): 17 mV/Pa
Max. SPL at 1 kHz: 130 dB
Frequency response: 50 to 18,000 Hz
Equivalent noise level, A-weighted: 32 dB
Connector: 3.5 mm jack
Cable length: approx. 1.60 m (62.99")
Supply voltage: 7.5 V

EW-DP SKP Digital Plug-on Transmitter
Power: +48V phantom power
Connector: 3.5 mm input
Internal recording via microSD (not included)
(2) AA battery
