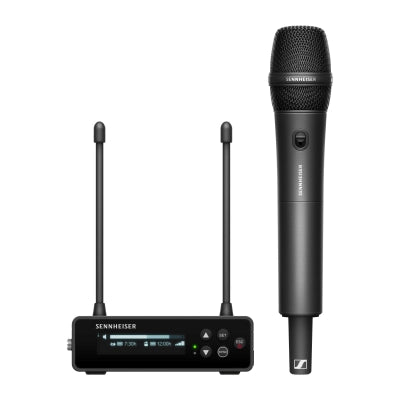

Sennheiser - EW-DP 835 Portable Digital Wireless Microphone System (Q1-6: 470.2 - 526 MHz)

EW-DP delivers an industry leading audio workflow that only advanced digital technology and UHF transmission can offer. This fully digital UHF wireless microphone system features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters.

At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for all. Bluetooth synchronization and system control via the Smart Assist app help you save time and energy on set. A front facing OLED display allows for easy menu navigation and Smart Notifications help to troubleshoot your system when you encounter a challenge. Magnetic and stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location.

The EW-DP 835 Set includes the SKM-S handheld transmitter with the MMD 835 cardioid dynamic microphone module, ideal for on-camera interviews and capturing isolated dialog in noisy environments. An integrated mute switch gives the talent control, but can also be overridden via the receiver or Smart Assist app. The SKM-S handheld transmitter is compatible with all Sennheiser microphone modules, enabling you the flexibility to change pick-up patterns based on your application.

Capture your full creative vision with EW-DP. Setup simplicity and digital clarity put time on your side so you can focus on what matters most. After all, production has enough challenges; sound doesn't need to be one of them.

Feature Overview

• Fully digital UHF system designed for filmmaking & video applications
• Industry leading 134 dB dynamic range for distortion free transmission
• Integrated Bluetooth for synchronization and control
• Intelligent battery management provides operating time (hours:minutes)
• Extended battery life: up to 12h on transmitter, 7h on receiver
• Magnetic, stackable, and versatile mounting options
• Up to 56 MHz bandwidth for flexibility in any RF environment
• Exceptionally low latency (1.9 ms)
• Plug-on transmitter: XLR & 3.5 mm inputs, +48V & recording via microSD
• External charging and powering via USB-C (receiver only)
• Smart Assist app for monitor & control

In the Box:
- EW-DP EK digital portable single channel receiver
- EW-D SKM-S digital handheld transmitter
- MMD 835 dynamic cardioid microphone module
- Mounting kit (Mounting plate, cold shoe, belt clip & screws)
- BA 70 li-ion battery & (2) AA battery
- Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
- Locking 3.5 mm TRS plug to XLR plug cable
- USB-C charging cable

EW-DP 835 Set Specifications

System
Availabe Frequency ranges:
Q1-6 (470.2 - 526 MHz)
R1-6 (520 - 576 MHz)
R4-9 (552 - 607.8 MHz)
Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD: < = -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range: 134 dB
System latency: 1.9 ms
Operating temperature: -10°C - +55°C (14°F - 131°F)
Relative humidity: 5 - 95% (non-condensing)

MMD 835 (Microphone Module)
Transducer principle: dynamic
Sensitivity: 2.1 mV/Pa
Sound pressure level: 154 dB SPL
Pick-up pattern: cardioid
