Sennheiser - Evolution Wireless Digital Combo Set - Q1-6 (470.2 - 526 MHz)

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.

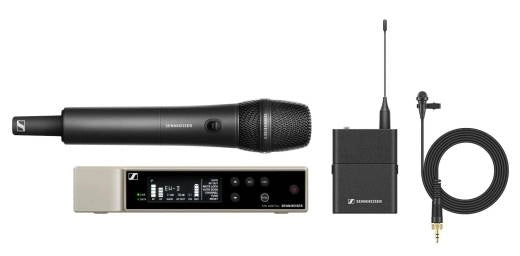

The ME2 Combo Set includes the EW-D SKM-S handheld transmitter with the dynamic MMD 835 microphone capsule in addition to a robust bodypack transmitter with metal housing and unobstrusive clip-on microphone ME 2 (omni-directional) with high speech intelligibility.

Features
• Digital wireless eliminates noise, interference and static bursts
• UHF transmission greatly enhances range, reliability and scalability
• Mobile App streamlines setup and operation and elimi nates complicated menus
• Automated setup creates reliable connections with minimal time and effort
• Up to 2,240 selectable frequencies
• Lithium Ion battery pack delivers up to 12 hours of ope ration (up to 8 hours of operation with AA batteries)
• 56 MHz Bandwidth will allow for up to 90 channels
• Preserves every detail of even the most dynamic per formances with 134 dB transmitter dynamic range

Included
• EW-D EM rack receiver
• EW-D SK bodypack transmitter
• EW-D SKM-S handheld transmitter
• ME 2 lavalier microphone
• MMD 835 microphone module
• MZQ 1 microphone clamp
• 2 rod antennas
• power supply with country adapters
• rackmount set
• 4 rubber feet
• quick guide
• safety guide

]Specifications
System
Bluetooth Low Energy (BLE) frequency range: 2402 - 2480 MHz
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD: < -60 dB for 1 kHz @ -3 dBfs input level
EW-D EM (Rack Receiver)
Input voltage: 11 - 13 V
Input current: < 300 mA
Transmit power (radiated): BLE: max. 10 mW EIRP
Audio output power: 18 dBu max.
Dimensions: 212 x 44 x 189 mm
Weight: approx. 1000 g (without an tennas and power supply)
EW-D SK (Bodypack Transmitter)
Input voltage: 2.0 - 4.35 V
Input current: < 300 mA
Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth: 200 kHz
Transmit power (radiated) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP
Dimensions 63 x 80 x 20 mm (without antenna)
Weight (without batteries) approx. 120 g
EW-D SKM-S Handheld Transmitter
Input voltage: 2.0 - 4.35 V
Input current: < 300 mA
Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack (not included)
Occupied bandwidth: 200 kHz
Transmit power (radiated):
• Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
• BLE: max. 10 mW EIRP
Dimensions: 50 x 268 mm (incl. MMD 835 microphone module) / 40 x 200 mm (without microphone module)
Weight (without batteries) approx. 304 g (incl. MMD 835 microphone module)
MMD 835 (Microphone Module)
Transducer principle: dynamic
Sensitivity: 2.1 mV/Pa
Sound pressure level: 154 dB SPL
Pick-up pattern: cardioid
EW-D EM (Rack Receiver)
Input voltage: 11 - 13 V
Input current: < /= 300 mA
Transmit power (radiated): BLE: max. 10 mW EIRP
Audio output power: 18 dBu max.
Dimensions: 212 x 44 x 189 mm
Weight: approx. 1000 g (without antennas and power supply)
ME 2 (Lavalier Microphone)
Transducer principle: pre-polarized condensor microphone
Pick-up pattern: omni-directional
Sensitivity (free field, no load) (1 kHz): 17 mV/Pa
Max. SPL at 1 kHz: 130 dB
Frequency response: 50 to 18,000 Hz
Equivalent noise level A-weighted (DIN IEC 651): 32 dB
Connector: 3.5 mm jack
Cable length: approx. 1.60 m
Supply voltage: 7.5
