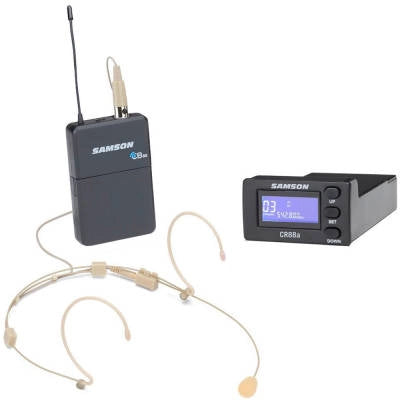

Samson - Concert 88a Wireless Headset Microphone System for XP310w or XP312w - K-Band

Add a cordless headset microphone setup to your Expedition XP310w or XP312w PA system with the Samson Concert 88a Wireless Headset Microphone System. Ideal for presenters, instructors, and dancing singers, this system features a bodypack transmitter, the DE5 headset mic, and a receiver module that easily installs in the back of your Expedition PA speaker.

With up to 100 available frequencies and simple syncing via IR, you can quickly get started and find a strong channel. Two AA batteries (available separately) will power the transmitter for up to eight hours, and the transmitter's power switch doubles as a handy mute function. If you move beyond the system's 100' line-of-sight operating range, the integrated tone key mitigates undesired signal transmission.

Easy Setup
The Concert 88a system is designed for easy setup in a hurry. Simply slide the receiver module into the open receiver slot on the back of your Expedition XP310w or XP312w, power on the PA and bodypack transmitter, and sync the receiver and transmitter.

As a frequency-agile wireless system, the Concert 88a offers up to 100 frequency presets to help you achieve reliable signal transmission. By operating from 542 to 566 MHz in the UHF spectrum, it avoids interference from Bluetooth and Wi-Fi signals.

Bodypack Transmitter with Headset Microphone
The CB88 bodypack transmitter connects to the included DE5 headset condenser microphone, which features an omnidirectional polar pattern to allow consistent sound pickup even as the subject turns their head.

Two AA batteries can power the transmitter for up to eight hours of operating time. Use the power switch to mute the mic between performances or turn it off for battery conservation.

Beneath the battery cover, you'll find a plastic screwdriver for adjusting the transmitter's input sensitivity. Generally avoid the maximum gain setting as it can cause distortion when the mic is used on loud sources.

Receiver Module
The receiver module is powered through its connection to your Expedition PA speaker, so it requires no batteries or power cables. The backlit LCD screen shows vital information including the selected channel and frequency as well as AF and RF levels. Press the up/down buttons to choose a channel, then use the set button to sync the transmitter to the same channel.

Details
• Bodypack Transmitter with Headset Mic
• Receiver Module Installs in PA Speaker
• Up to 100 Frequencies
• Easy Sync via IR
• Transmitter Power/Mute Switch
• 8-Hour Battery Life via AA Batteries
• Up to 100' Operating Range
• Samson SWMC88BDE5-K Specs
System
• Wireless Transmission: Analog UHF
• Number of RF Channels: 100
• Included Transmitters: 1 x Bodypack with Microphone
• Diversity: Non-Diversity
• RF Frequency Band: K 470-494MHz
• RF Bandwidth: 24 MHz
• Max Operating Range: 100' / 30.5 m (Line of Sight)
• Dynamic Range: 100+ dBA
• Encryption: None
• Modulation: F3E
• Pilot Tone: 35kHz
Receiver
• Form Factor: Receiver Module
• Mounting Options: Slot-Mount
• Number of Audio Channels: 1
• Audio I/O: 1 x Proprietary Unbalanced Output
• Audio Output Leve: l0 dBu (Max)
• Frequency Response: 50 Hz to 15 kHz 3 dB
• Display & Indicators: 1 x Backlit LCD (AF Level, Channel, Frequency, RF Level)
Transmitter
• Form Factor: Bodypack
• RF Output Power: 10 mW (EIRP)
• Audio I/O: 1 x TA3/Mini XLR Male Input
• Pad: None
• Muting: Off/On Switch
• Gain Range: 38 dB
• Signal Processing: None
• Sync Method: IR
• Antenna: 1 x 1/4 Wave External, Fixed
• Power Requirements: Battery
• Battery Type: 2 x AA (Not Included)
• Approx. Battery Life: 8 Hours
• USB/Lightning Connectivity: None
• Display & Indicators: 1 x LED (Battery Status, Mute, Power)
Microphone
• Form Factor: Headset
• Sound Field: Mono
• Operating Principle: Pressure Operated
• Capsule: Electret Condenser
• Diaphragm: 0.20" / 5 mm
• Polar Pattern: Omnidirectional
• Frequency Range: 20 Hz to 20 kHz
• Maximum SPL: 135 dB SPL
• Impedance: 2 Kilohms 30%
• Sensitivity: -42 dB
• Output Connectors: 1 x TA3/Mini XLR Female
• Cable Length:3.94' / 1.2 m
• Operating Voltage: 1.5 to 12 V
