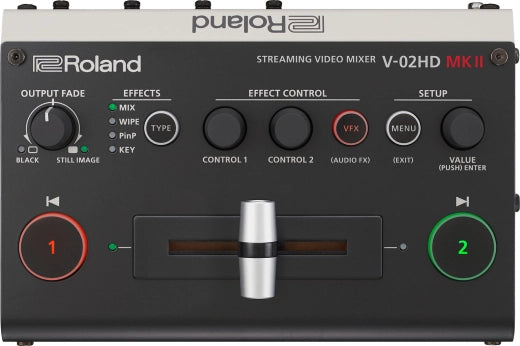

Roland - V-02HD MKII Multi-Format Streaming Video Mixer

The Roland V-02HD MK II Streaming Video Mixer is the world's easiest two-camera livestreaming solution. With its intuitive layout, large controls, and T-bar fader, it's incredibly simple to operate, even if you have no broadcasting experience.

This desktop device allows you to connect and switch two high-quality HDMI cameras and send them directly to your favorite streaming platform over USB-C. You can also mix in audio sources via dedicated inputs and HDMI, apply video effects and transitions, and more. With the V-02HD MK II, you have the interface you need to bring higher production values to your live video productions.

Go live in three quick steps:
1. Plug in up to two sources via HDMI, including cameras, computers, mobile devices, and gaming consoles.
2. Connect the USB-C output to your computer.
3. Launch your streaming software and select the V-02HD MK II as the camera source.

Upgrade Your Sound Too
The V-02HD MK II also includes a 10-channel digital audio mixer with Roland's legendary sound quality. There are two audio inputs with 3.5 mm jacks, and each supports a microphone - including lavalier mics that require plug-in power - or stereo audio from a smartphone, mixer, or other device. Embedded stereo audio from your HDMI sources can be mixed in as well, including microphones connected to your cameras.

Switch with Your Feet
If you give demonstrations or perform in your livestreams, your hands are busy with that task. The V-02HD MK II supports control with up to two optional BOSS footswitches, allowing you to direct your stream without interrupting your presentation. Stomp on a footswitch to switch camera angles, cut to a static image, transition scene layouts, fade picture-in-picture windows, and more.

Specifications
VIDEO
Video Processing: 4:4:4 (Y/Pb/Pr), 10-bit
Input Connectors: INPUT 1--2: HDMI type A x 2
Output Connectors
PROGRAM OUT: HDMI type A
PREVIEW OUT: HDMI type A
USB STREAM: USB Type-C (TM)

Input Formats
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p
1080/23.98p, 1080/24p
VGA (640 x 480/60Hz), SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz)
WXGA (1280 x 800/60Hz), SXGA (1280 x 1024/60Hz)
FWXGA (1366 x 768/60Hz), SXGA+ (1400 x 1050/60Hz)
UXGA (1600 x 1200/60Hz), WUXGA (1920 x 1200/60Hz)

Output Formats
Program Out, Preview Out:
480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/29.97p
576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p
SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
HD (1280 x 720/60 Hz), FHD (1920 x 1080/60 Hz)

USB STREAM:
1080/60p, 720/60p, 640 x 480/60p
1080/59.94p, 720/59.94p, 640 x 480/59.94p
1080/29.97p, 720/29.97p, 640 x 480/29.97p
1080/50p, 720/50p, 640 x 480/50p
1080/25p, 720/25p?640 x 480/25p
*Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.

Video Effects
Transition: CUT, MIX (DISSOLVE), WIPE (9 types)
Composition: PinP (RECTANGLE, CIRCLE, DIAMOND), KEY (Luminance Key, Chroma Key)
Visual Effects (14 types): MOSAIC, WAVE, RGB REPLACE, COLORPASS, NEGATIVE, COLORIZE, POSTERIZE, SILHOUETTE, EMBOSS, FIND EDGES, MONOCOLOR, HUE OFFSET, SATURATION OFFSET, VALUE OFFSET
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output

AUDIO
Audio Processing: Sampling rate: 24 bits/48 kHz
Audio formats: Linear PCM, 24 bits/48 kHz, 2ch
Input Connectors
Analog: AUDIO IN 1--2: Stereo miniature type x 2, plug-in power supported
Digital: USB STREAM: USB Type-C™; INPUT 1--2: HDMI Type A x 2

Output Connectors
Analog: PHONES: Stereo miniature type
Digital: USB STREAM: USB Type-C™; PROGRAM OUT: HDMI type A; PREVIEW OUT: HDMI type A

Input Level
AUDIO IN: -10 dBu (Maximum: +10 dBu)

Input Impedance
AUDIO IN: 10 k ohms

Output Level
PHONES: 92 mW + 92 mW (32 ohms)

Output Impedance
PHONES: 10 ohms

Audio Effects: Delay, Reverb, High pass filter, Noise gate, De-esser, Compressor, Equalizer, Voice changer
Multi-band compressor, Limiter, Test tone output

OTHERS
Other Connectors:
• USB STREAM: USB Type-C (TM) (for backup from PC, for remote control from PC and iPad)
• CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)

Other Functions:
• Preset Memory (8 types)
• Panel lock function
• EDID Emulator
• Auto Switching
• Auto Input Detect

Power Supply: AC Adaptor

Dimensions (W x D x H): 160 x 108 x 51 mm / 6-5/16 x 4-1/4 x 2-1/16 inches
Weight (excluding AC adaptor): 0.6 kg / 1 lbs 6 oz

Accessories
- Startup Guide
- AC adaptor
- Power cord
- Cord hook
