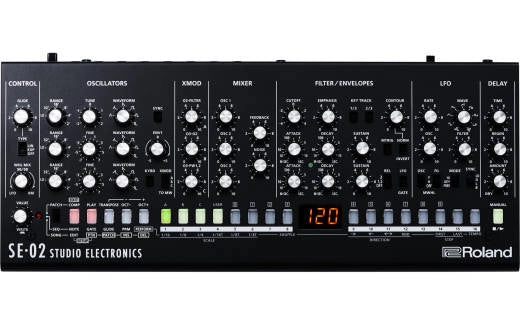

Roland - SE-02 - Boutique Analog Mono Synthesizer Module

A collaborative effort from Roland and Studio Electronics, the SE-02 is the debut product of the new Roland Boutique Designer Series. The SE-02 uses authentic discrete analog circuitry to create a synthesizer with a distinctly vintage sound and vast programming options. With an array of high-quality knobs and switches and a uniquely creative onboard sequencer, the SE-02 delivers massive tone and texture with expressive hands-on control.

The SE-02's monophonic synthesizer engine features three voltage-controlled oscillators, a voltage-controlled 24 dB low-pass filter, and a dual gain-stage amplifier. The oscillators have six different kinds of waveforms with the warmth and complex character associated with true analog VCOs. What's more, these VCOs are temperature stabilized with automatic tuning, so you get all the benefits and none of the downsides.

The SE-02 is big and bold, with thick, rich lows and clear, vibrant highs - exactly what you think of when you imagine classic vintage synth tone. And while the SE-02 can create astonishingly great vintage sounds, it can do so much more. It has three types of cross modulation (XMOD), a ripping filter feedback loop, a tempo-syncing LFO with nine waveforms, envelope sweeping and inverting, oscillator sync, a noise generator, and a tempo-syncing delay.

While its a compact "go-anywhere" device, the knobs, switches, and buttons are sturdy and plentiful, giving you a vast palette of sound-shaping capabilities at your fingertips. Everything is hands-on and knob-per-function, with deep control and a logical, intuitive layout. To get started, you can choose from 384 expertly programmed preset sounds that cover a wide range of classic and modern tones. Tweak and modify these sounds or create something completely new, storing your own custom creations in the 128 available user locations.

A More Musical Sequencer

The SE-02 includes a powerful 16-step sequencer to add motion and dimension to your sounds. It can sync to external tempo via MIDI, USB, or trigger input, and per-step gate time, adjustable glide, tempo, and patch number are stored with each sequence. Creative performance features allow you to set shuffle, scale, direction, and first/last steps on the fly. Even synth parameters can be automated by sequencing changes - just press a step and move a control. And despite the SE-02s compact size, the sequencer is fun and intuitive, lending itself to both studio and live usage. You can store 128 sequence patterns and construct 16 songs, each with up to 16 parts.

Features:

Discrete analog circuitry with knob-per-function interface

Three voltage controlled oscillators with six waveforms

Temperature-stabilized oscillators with automatic tuning

24 dB low-pass filter and dual gain-stage amplifier

Three types of cross modulation (XMOD), feedback loop, and noise generator

Tempo-syncing LFO with nine waveforms

Tempo-syncing digital delay with bypass to maintain analog signal path

Save and recall sounds with 384 preset and 128 user locations

Musical and intuitive pattern sequencer with song mode

Sequence notes, gate time, glide, and synth parameters

CV, VCF CV and gate inputs, plus trigger in/out

External Input for routing audio through the SE-02s filter section

Standard MIDI, USB-MIDI, and USB-Audio

Create a polyphonic synth by using Chain Mode to connect two or more SE-02s together via MIDI

Specifications:

Polyphony: 1 voice

Preset Patch: 384 (128 x 3 BANK)

User Memory: Patch: 128, Pattern: 128, Song: 16

Oscillators:
OSC 1, OSC 2, OSC 3 (OSC 3 is also available as LFO)
Waveform: Triangle, Sawtooth, Triangle + Sawtooth (OSC 1, 2 only), Reverse sawtooth (OSC 3 only), Square 13

Controllers:

COMMON section
VALUE knob
Tempo LED
MODE select switch
FUNCTION select buttons
116 buttons
Display
MANUAL button

CONTROL section
GLIDE knob
TYPE switch
WHL MIX knob

OSCILLATORS section
[VCO 1]
RANGE knob
TUNE knob
WAVEFORM knob

[VCO 2]
RANGE knob
FINE knob
WAVEFORM knob

[VCO 3]
RANGE knob
FINE knob
WAVEFORM knob
SYNC switch
ENV1 knob
KYBD switch
XMOD TO MW switch

XMOD section
O2-FILTER knob
O3-O2 knob
O3-PW1, 2 knob

MIXER section
OSC1 knob
OSC2 knob
OSC3 knob
FEEDBACK knob
NOISE knob

FILTER/ENVELOPES section
[FILTER]
CUTOFF knob
EMPHASIS knob
KEY TRACK 1/3, 2/3 switch
CONTOUR knob
MTRIG switch
NORM/INVERT switch

[FILTER ENVELOPE]
ATTACK knob
DECAY knob
SUSTAIN knob

[AMP ENVELOPE]
ATTACK knob
DECAY knob
SUSTAIN knob
REL switch
LFO/GATE switch
Gate LED

LFO section
RATE knob
OSC knob
WAVE knob
FILTER knob
MWHL switch
MODE switch
SYNC switch

DELAY section
TIME knob
REGEN knob
AMOUNT knob

Effect: Delay

Connectors:
PHONES jack: Stereo miniature phone type
OUTPUT jack: Stereo miniature phone type
EXT INPUT jack: Miniature phone type
VCF CV INPUT jack: Miniature phone type
CV INPUT jack: Miniature phone type
GATE INPUT jack: Miniature phone type
TRIGGER IN jack: Miniature phone type
TRIGGER OUT jack: Miniature phone type
MIDI connectors (IN, OUT)
USB port: Micro B type (Audio, MIDI)

Power Supply: AC adaptor (PSB-1U)

Current Draw: 2 A

Size and Weight:
Dimensions (W x D x H): 300 x 128 x 46 mm (11-13/16 x 5-1/16 x 1-13/16 inches
Weight (excluding AC adaptor): 950 g (2 lbs 2 oz)

Accessories:
- Owner's Manual
- Leaflet "USING THE UNIT SAFELY"
- AC adaptor
- Power cord
