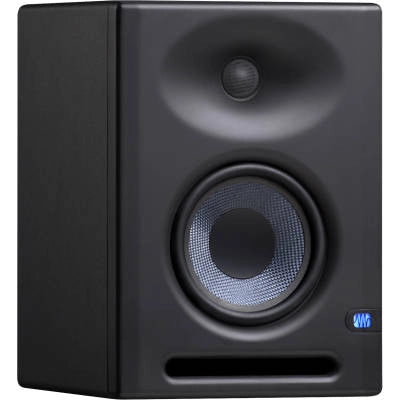

PreSonus - Eris E5 XT 2-Way 5 Active Studio Monitor with Wave Guide (Single)

The Eris E5 XT is a substantial update to a highly praised classic. Deeper lows and a wider, more controlled sweet spot (thanks to its new EBM wave guide design) mean that PreSonus' best-selling studio monitors just got even better.

Studio Speakers with a Wide Sweet Spot
The Eris XT studio monitors are outfitted with a new EBM (Elliptical Boundary Modeled) wave guide designed by none other than Hugh Sarvis of WorxAudio, the mind behind PreSonus' award-winning CDL loudspeakers and lauded R-Series monitors. The result? A superior high-frequency response and wider 100-degree horizontal dispersion to create a broader sweet spot. It's ideal for group listening and collaboration-while narrow vertical dispersion reduces reflections from your desk. Silk-dome tweeters ensure snappy, accurate transient reproduction.

Lows That Go Lower
The familiar woven composite low-frequency driver still offers Eris' signature tight, clear bass; plenty of punch and no flub. Eris E5 XT studio monitors sport a ported enclosure that is larger than that of their predecessors, allowing them to reach down to an astonishing 48 Hz. That's 10 Hz below previous models-with no subwoofer required!

Studio Monitor Connections
It's easy to feed audio to your Eris E5 XT studio monitors from an audio interface, mixer, monitor controller, or almost any other line-level source. Eris E5 XT monitors provide balanced XLR, balanced 1/4" TRS, and unbalanced RCA line-level inputs. You'll have no problem hooking your Eris speakers up to virtually anything.

Features
Construction
• 5.25-inch woven composite low-frequency transducer
• 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
• Front-firing acoustic port for superior bass-frequency reproduction
• Optimized, resonance-suppressing internal bracing
• 102 dB maximum continuous SPL
Controls
• HF Adjust (+/-6 dB, continuously variable)
• Midrange Adjust (+/-6 dB, continuously variable)
• Acoustic Space settings (flat, -2, -4 dB) for accurate mixing contour
• Highpass filter (Off, 80 Hz, 100 Hz)
Power
• 70 watt, Class AB biamplification
• Amplifier "soft start" feature eliminates popping on power-up
• Internal power supply with IEC connector

Specifications
Inputs:
• 1- Balanced XLR
• 1- Balanced 1/4" TRS
• 1- Unbalanced RCA
Performance
Frequency Response: 48 Hz - 20 kHz
Crossover Frequency: 3 kHz
LF Amplifier Power: 45W
HF Amplifier Power: 35W
Peak SPL (@ 1 meter): 102 dB
LF Driver: 5.25"
HF Driver: 1" silk dome
Input Impedance: 10 k?
Dispersion: 100 degrees horizontal by 60 degrees vertical
User Controls
Volume Range: A-type taper
MF Control: -6, 0, +6 dB
HF Control: -6, 0, +6 dB
Low Cut: Flat, 80 Hz, or 100 Hz
Acoustic Space: Flat, -2 dB, or -4 dB
Protection
• RF interference
• Output-current limiting
• Over-temperature
• Turn-on/off transient
• Subsonic filter
• External mains fuse
Power
100-120V ~50/60 Hz or 220-240V ~50/60 Hz
Cabinet
Vinyl-laminated, medium-density fiberboard
Physical
Dimensions: 11" x 9" x 8" (279.4mm x 228.6mm x 203.2mm)
Weight: 11 lbs (4.99 kg)
