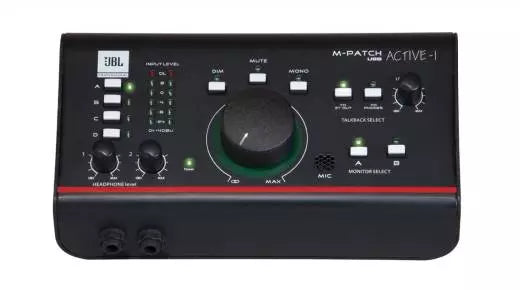

JBL - M-Patch Active-1 Active Precision Monitor Controller
JBL - M-Patch Active-1 Active Precision Monitor Controller is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at Rimouski
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more*
-
Processing: All orders are prepared and shipped within 24 hours (Monday to Friday).
-
Shipping Time: Delivery typically takes 3 to 7 business days. For faster delivery, please select Express Shipping at checkout.
- *Certain regions and products are excluded from free shipping due to size, weight, or destination.
JBL - M-Patch Active-1 Active Precision Monitor Controller is backordered and will ship as soon as it is back in stock.
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
Precision Monitor Control Plus Studio Talkback and USB Audio I/O
The M-PATCH ACTIVE-1 accommodates four input sources (3 x stereo analog and 1 x USB) and three stereo analog outputs plus USB. In addition to the core functionality of providing seamless A/B switching between input signals and output speaker monitor systems, the ACTIVE-1 delivers a full complement of audio monitoring functions, including precision volume control, mono summing, mute, and dim (ducking). A handy footswitch-activated talk-back function, complete with on-board condenser microphone and selectable routing, has also been integrated, making the ACTIVE-1 the ideal low-cost solution for a broad range of studio production applications.
Designed to provide the lowest-noise operation possible in an active monitor controller, the ACTIVE-1 is ideal for applications where both signal attenuation and boost is needed. In addition to the feature complement found on the PASSIVE-1, the ACTIVE-1 also includes LED level metering and convenient switch-selectable +4dBu/-10dBV input stage operation.
The ACTIVE-1 features on-board USB, allowing for direct digital audio recording and playback when used with a computer DAW. The USB output mirrors the signals appearing at the analog 2 Track outputs, while the computer's L/R output feeds the USB in.
Housed in a sturdy metal chassis and fitted with a durable array of switches and secure connectors, the ACTIVE-1 is built to provide years of worry-free operation.
Features:
• 4 inputs, 4 outputs
• USB Input and Output
• 2 headphone amps
• Footswitch-Controlled Talkback
• Built-in Talkback Mic
• Mono summing
• Dim switch
• A/B Speaker Switching
• Precision Rotary Attenuator
• Level meters
Specifications:
Frequency Range Line Level Inputs and Outputs +0.5: -1dB 10hz to 30kHz
Noise Monitor A B, Studio Outputs, 2-Track: -92dBu Typical
Outputs
Line Level (-10dB): -10dBu/+8dBu (NOM/MAX)
Line Level (+4dB): +4dBu/+22dBu (NOM/MAX)
Dynamic Range Line Inputs to outputs: 114dB minimum
Crosstalk Mute/Level OFF: 92dB @1kHz
Volume Control Range
Dim Switch: -20dB
Master Volume studio output gain: 34dB max
USB
Channels: 2
Drivers: Legacy type and ASIO
Compatibility: All current USB Audio systems
